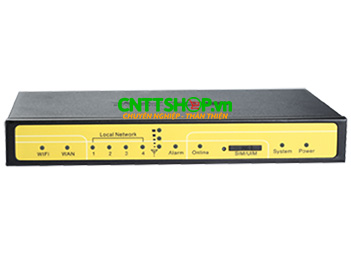

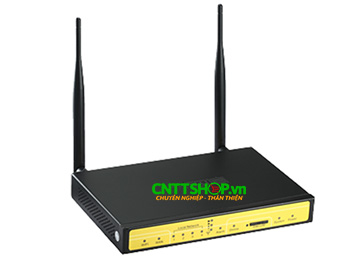

Router công nghiệp Four-Faith F3534
Các nền tảng công nghệ mới ngày các phát triển và nhân rộng để trợ giúp con người rất nhiều trong các lĩnh vực như sản xuất, dịch vụ cung ứng, tự động hóa ... Điều này, đòi hỏi hệ thống phải có các thiết bị kết nối thông minh để làm cầu nối giữa việc trao đổi thông tin với các loại máy móc công nghiệp và máy tính. Một trong những thiết bị đáp ứng được tiêu chí này là Router công nghiệp F3534 của hãng Four-Faith đang được phân phối tại CNTTShop.vn.
Mô tả chung Four-Faith F3534:
Design for Industrial Application:
High-powered industrial cellular module
High-powered industrial 32bits CPU
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~35V
Stability and Reliability:
Support hardware and software WDT:
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
Ethernet port: 1.5KV magnetic isolation protection
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface (WEB or CLI)
High-performance:
Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA.
Support double link backup between TD-SCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
Support local and remote firmware upgrade,import and export configure file
Support NTP, RTC embedded
Support mulitiple DDNS provider service
Support VLANs, MAC Address clone, PPPoE Server
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and overvoltage protection
Antenna port: lightning protection(optional)
Standard and Convenience:
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support intellectual mode, enter into communication state automatically when powered
WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode
WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter
Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
Full protocol support , such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc
Schedule Reboot, Schedule Online and Offline,etc
Thông số kỹ thuật Four-Faith F3534 Specification:
| Datasheet Four-Faith F3534 |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
TD-SCDMA/HSDPA/HSUPA 1880-1920/2010-2025MHz
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12 |
| Bandwidth |
Download speed:2.8Mbps, upload speed:2.2Mbps |
| TX power |
<24dBm |
| RX sensitivity |
<-108dBm |
| WIFI Specification |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc.
WPS (optional) |
| TX power |
21.5dBm（11g），26dBm（11b) |
| RX sensitivity |
<-72dBm@54Mpbs |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
8MB(Extendable to 64MB) |
| SDRAM |
64MB |

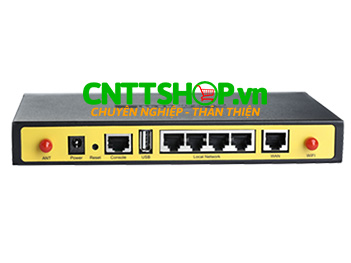

| Interface type |
| WAN |
1x 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1x RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps |
| Indicator |
"Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
| USB |
Standard A type USB host interface (reserved) |
| Power supply |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~35V |
| Consumption |
<450mA (12V) |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
206x135x28 mm |
| Weight |
790g |
| Environmental Limits |
| Operating Temperature |
-35~+75ºC（-31~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
