| Datasheet Four-Faith F3626 |
| Cellular Specification |
| Standard and Band |
CDMA2000 1X EVDO Rev A 800MHz,800/ 1900MHz (optional),
EVDO Rev B 800/ 1900MHz (optional) 450MHz (optional)
CDMA2000 1X RTT, IS-95 A/B
|
| Bandwidth |
Download speed:3.1Mbps, upload speed:1.8Mbps;
Rev B (optional): Download speed: 14.7Mbps, upload speed: 5.4Mbps
|
| TX power |
<23dBm |
| RX sensitivity |
<-104dBm |
| WIFI Specification |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc.
WPS (optional) |
| TX power |
20dBm（11n），24dBm（11g），26dBm（11b) |
| RX sensitivity |
<-72dBm@54Mpbs |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
16MB(Extendable to 64MB) |
| RAM |
128MB |

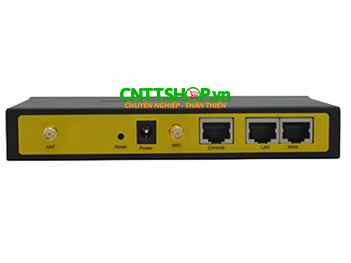

| Interface type |
| WAN/LAN |
WAN/LAN configurable; 1 10/100 Mbps WAN port(RJ45), auto MDI/ MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 , 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps |
| Indicator |
"WAN", "LAN", "System", "WIFI", " Online ", "SIM", "Signal Strength", "Power" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
| Power supply |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~36V |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
157x97x25 mm |
| Weight |
440g |
| Environmental Limits |
| Operating Temperature |
-35~+75ºC（-31~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
