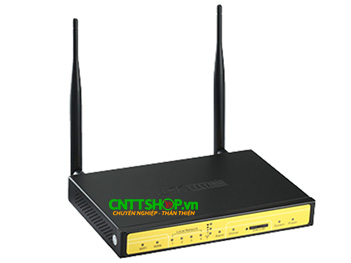

Four-Faith F3734 LTE/TD-SCDMA WIFI Router
Thông số kỹ thuật Four-Faith F3734 Specifications:
| Datasheet Four-Faith F3734 | |
| Cellular Module | Industrial cellular module |
| Standard and Band | Support：LTE TDD 2600/ 2300MHz. Support：DC-HSPA+/HSPA+/ HSUPA/ HSDPA/ UMTS 2100/ 900MHz Support：EDGE/ GPRS/ GSM 850 /900/ 1800/ 1900MHz |
| Bandwidth | LTE (Download speed:68Mbps, upload speed: 17Mbps) / HSUPA: 5.76Mbps (upload speed)/ HSDPA:14.4Mbps (Download speed) / HSPA+: 28Mbps (Download speed) |
| TX power | <24dBm |
| RX sensitivity | <-106dBm |
| WIFI Specification | |
| Standard | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
| Security | WEP, WPA, WPA2, etc. WPS (optional) |
| TX power | 21.5dBm（11g），26dBm（11b） |
| RX sensitivity | <-72dBm@54Mpbs |
| Hardware System | |
| CPU | Industrial 32bits CPU |
| FLASH | 8MB(Extendable to 64MB) |
| SDRAM | 64MB |

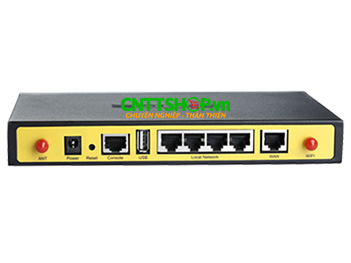

| Interface type | |
| WAN | 1x 10/100 Mbps WAN port (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN | 4x 10/100 Mbps Ethernet ports (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial | 1x RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |

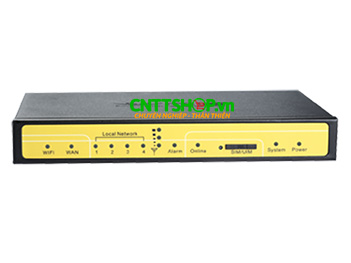

| Indicator | "Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna | Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
| USB | Standard A type USB host interface (reserved) |
| Power supply | |
| Standard Power | DC 12V/1.5A |
| Power range | DC 5~35V |
| Consumption | <450mA (12V) |
| Physical Characteristics | |
| Housing | Iron, providing IP30 protection |
| Dimensions | 206x135x28 mm |
| Weight | 790g |
| Environmental Limits | |
| Operating Temperature | -35~+75ºC（-31~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) |
| Operating Humidity | 95% ( unfreezing) |
