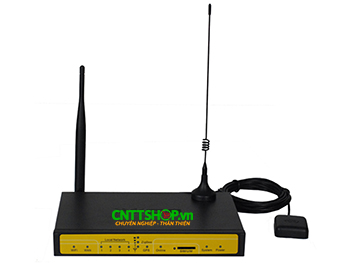

| Datasheet Four-Faith F7234 |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
CDMA2000 1xRTT 800MHz,
800/ 1900MHz (optional), 450MHz (optional) |
| Bandwidth |
153.6Kbps |
| TX power |
<30dBm |
| RX sensitivity |
<-104dBm |
| WIFI Specification |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc.
WPS (optional) |
| TX power |
21.5dBm（11g），26dBm（11b） |
| RX sensitivity |
<-72dBm@54Mpbs |
| GPS Specification |
| Receiver Type |
50-channle
GPS L1（1575.42MHz）C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Support GALILEO |
| Max. update rate |
4 Hz |
| Accuracy |
Position: 2.5m CPE
SBAS: 2.0m CPE |
| Acquisition |
Cold starts: 29S
Warm starts: 29S
Aided starts: <1S
Hot starts: <1S |
| Sensitivity |
Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -144dBm |
| Timing accuracy |
RMS: 30ns
99%: <60ns
Granularity: 21ns |
| Time pulse |
Configurable, 0.25 to 1000Hz |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
8MB(Extendable to 64MB) |
| SDRAM |
64MB |

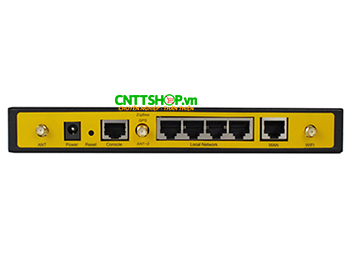

| Interface Type |
| WAN |
1x 10/100 Mbps WAN port (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4x 10/100 Mbps Ethernet ports (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1x RS232 (or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space (optional), mark (optional)
Baud rate: 2400~115200 bps |

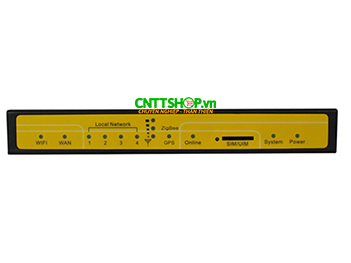

| Indicator |
"Power", "System", "Online", "GPS", " Local Network ", "WAN", "WIFI",“Signal Strength”. |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
GPS: Standard SMA female interface, 50 ohm |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
| Power Input |
| Standard Power |
DC 12V/1.5A |
| Power Range |
DC 5~35V |
| Consumption |
<650mA (12V) |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
206x135x28 mm |
| Weight |
795g |
| Environmental Limits |
| Operating Temperature |
-35~+75ºC（-31~+167℉） |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
