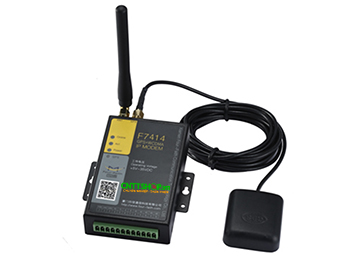

| Datasheet Four-Faith F7414 |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
UMTS/ WCDMA/ HSDPA/ HSUPA 850/ 1900/ 2100MHz, 850/ 900/ 1900/ 2100MHz (optional)
GSM850/ 900/ 1800/ 1900MHz
GPRS/EDGE CLASS 12 |
| Bandwidth |
HSUPA: 5.76Mbps (Upload speed)/ HSDPA: 7.2Mbps (Download speed) /UMTS: 384Kbps (DL/ UL) |
| TX power |
<24dBm |
| RX sensitivity |
<-109dBm |
| GPS Specification |
| GPS Specification |
Industrial GPS Module |
| Receiver Type |
50 Channels
GPS L1（1575.42MHz）C/A Code
SBAS: WAAS，EGNOS，MSAS，GAGAN
Compatible: GALILEO |
| Maximum Navigation Update Rate |
4 Hz |
| Horizontal position accuracy |
Autonomous：2.5m CPE
SBAS：2.0m CPE |
| Time-To-First -Fix |
Cold Start(Autonomous)：29S
Warm Start(Autonomous)：29S
Aided Starts：<1S
Hot Starts(Autonomous)：<1S |
| Sensitivity |
Tracking & Navigation：-160dBm
Reacquisition：-160dBm
Cold Start(Autonomous)：-144dBm |
| Timing Accuracy |
RMS：30ns
99%：<60ns
Granularity：21ns |
| Time Pulse Frequency |
Configurable 0.25Hz to 1000Hz |
| Hardware System |
| CPU |
Industrial 32 bits CPU |
| FLASH |
512KB (Extendable) |
| SRAM |
256KB(Extendable) |
| Interface Type |
| Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 , 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps |
| Indicator |
"Power", "ACT", "Online", "GPS" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
GPS: Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Terminal block interface, reverse-voltage and overvoltage protection |
| Power Input |
| Standard Power |
DC 12V/0.5A |
| Power Range |
DC 5~35V |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
91x58.5x22 mm |
| Weight |
210g |
| Environmental Limits |
| Operating Temperature |
-25~+65ºC (-13~+149℉) |
| Extended Operating Temperature |
-30~+75ºC (-22~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
