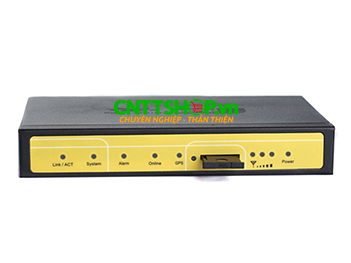

| Datasheet Four-Faith F7425 |
| Standard and Band |
UMTS/ WCDMA/ HSDPA/ HSUPA/ HSPA+ 850/ 1900/ 2100MHz, 850/ 900/ 1900/ 2100MHz (optional)
GSM850/ 900/1800/ 1900MHz
GPRS/EDGE CLASS 12
|
| Bandwidth |
HSUPA:5.76Mbps (Upload speed)/ HSDPA:7.2Mbps (Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps (Download speed) |
| TX power |
<24dBm |
| RX sensitivity |
<-109dBm |
| GPS Specification |
| GPS Module |
Industrial GPS module |
| Receiver Type |
50-channle
GPS L1（1575.42MHz）C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Support GALILEO
|
| Max. update rate |
4 Hz |
| Accuracy |
Position:2.5mCPE
SBAS:2.0mCPE
|
| Acquisition |
Cold starts: 29S
Warm starts: 29S
Aided starts: <1S
Hot starts: <1S
|
| Sensitivity |
Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -144dBm
|
| Timing accuracy |
RMS: 30ns
99%: <60ns
Granularity: 21ns
|
| Time pulse |
Configurable, 0.25 to 1000Hz |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
8MB (Extendable to 64MB) |
| SDRAM |
64MB |
| Interface type |
| LAN |
1x 10/100 Mbps Ethernet ports (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1x RS232 (or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200bits/s
|
| Indicator |
"Power", "System", "Online", "Link/ACT", "Alarm", "GPS" ,“Signal Strength”. |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection (optional)
|GPS: standard SMA female interfaces, 50 ohm, lighting protection (optional)
|
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
| Power |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~35V |
| Consumption |
<450mA (12V) |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
157x97x25 mm |
| Weight |
445g |
| Environmental Limits |
| Operating Temperature |
-35~+75ºC（-31~+167℉） |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
