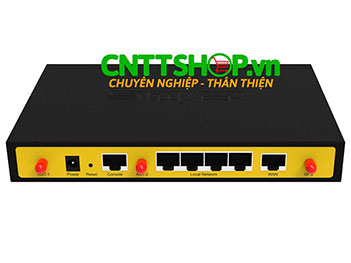

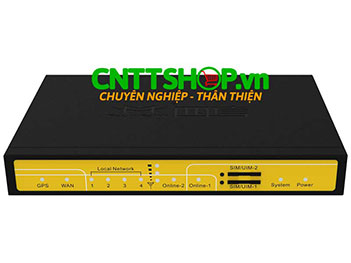

Four-Faith F7946 GPS Dual-Module Industrial Router
| Four-Faith Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật Four-Faith F7946
| Hardware System | |
| CPU | Industrial 32bits CPU |
| FLASH | 16MB (Extendable to 64MB) |
| DDR2 | 128MB |
| Cellular Specification | |
| Standard and Band | Main module: - LTE FDD 2600/2100/1800/900/800MHz (Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25) (optional) - LTE TDD 2600/1900/2300MHz (Band 38/39/40) (800/1400/1800MHz(Band27/61/62) (optional) - DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz (Band 1/2/5/6/8) - TD-SCDMA 2010/1900MHz(A/F frequency band, Band 34/39) - CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz (optional) - EVDO Rev B 800/1900MHz(optional) 450MHz (optional) - EDGE/GPRS/GSM 850/900/1800/1900MHz Standby module: - LTE FDD 2600/2100/1800/900/800MHz (Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25) (optional) - LTE TDD 2600/1900/2300MHz (Band 38/39/40) (800/1400/1800MHz (Band27/61/62) (optional) - DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz (Band 1/2/5/6/8) - TD-SCDMA 2010/1900MHz (A/F frequency band, Band 34/39) - CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz (optional) - EVDO Rev B 800/1900MHz (optional) 450MHz (optional) - EDGE/GPRS/GSM 850/900/1800/1900MHz |
| Bandwidth | LTE FDD: Download speed 100Mbps, Upload speed 50Mbps LTE TDD: Download speed 61Mbps, Upload speed 18Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps |
| GPS Specification | |
| Receiver Type | 50-channel GPS L1 (1575.42MHz) C/A code SBAS: WAAS, EGNOS, MSAS, GAGAN Support GALILEO |
| Max. update rate | 4 Hz |
| Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE |
| Acquisition | Cold starts: 29S Warm starts: 29S Aided starts: <1S Hot starts: <1S |
| Sensitivity | Tracking: -160dBm Reacquisition: -160dBm Cold starts: -144dBm |
| Timing accuracy | RMS: 30ns 99%: <60ns Granularity: 21ns |
| Time pulse | Configurable, 0.25 to 1000Hz |
