| Cellular Module |
Industrial cellular module |
| Standard and Band |
EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional) |
| Bandwidth |
85.6Kbps |
| TX power |
GSM850/900: <33dBm
GSM1800/1900: <30dBm |
| RX sensitivity |
<-107dBm |
| ZigBee Specification |
| ZigBee Module |
Industrial ZigBee Platform |
| Standard and Band |
IEEE 802.15.4
ISM 2.4 ~2.5GHz |
| Indoor/Urban Range |
30m
90m(With PA) |
| Outdoor/RF Line-of-Sight Range |
500m
2000m(With PA) |
| Transmit Power |
2.82 mw (+4.5dBm)
100 mw (+20dBm) (With PA) |
| Bandwidth |
250Kbps |
| Receiver Sensitivity |
-97dBm
-103dBm(With PA) |
| Network Topologies |
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh |
| Number of channels |
16 Direct Sequence Channels |
| Channel |
11 to 26 |
| Max packge size |
300Bytes |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
8MB(Extendable to 64MB) |
| SDRAM |
64MB |

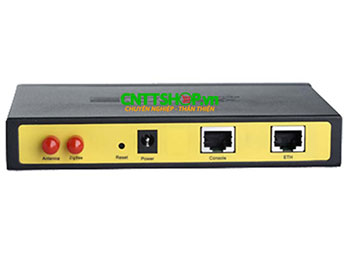

| Interface Type |
| Ethernet |
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200bits/s |

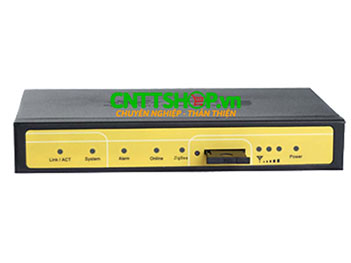

| Indicator |
"Power", "System", "Online", "Link/ACT", "Alarm", "ZigBee" ,“Signal Strength”. |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
| Power supply |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~35V |
| Consumption |
<450mA (12V) |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
157x97x25 mm |
| Weight |
440g |
| Environmental Limits |
| Operating Temperature |
-35~+75ºC（-31~+167℉） |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
