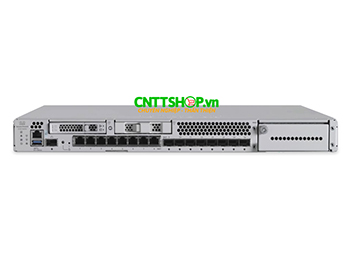

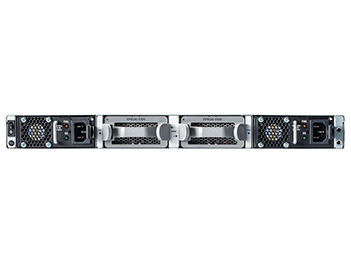

| Datasheet Cisco FPR3105-ASA-K9 |
| Specifications |
| Stateful inspection firewall throughput |
10.0 Gbps |
| Stateful inspection firewall throughput (multiprotocol) |
9.0 Gbps |
| Concurrent firewall connections |
1.5 million |
| New connections per second |
150 |
IPsec VPN throughput
(450B UDP L2L test) |
5.5 Gbps |
Projected IPsec VPN throughput
(450B UDP L2L test) with VPN Offload (ASA 9.18) |
7 |
| Maximum VPN Peers |
2 |
| Security contexts (included; maximum) |
2; 100 |
| High availability |
Active/active and active/ standby |
| Clustering |
8 |
| Scalability |
VPN Load Balancing |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager |
Web-based, local management for small-scale deployments |
| Dimensions (H x W x D) |
1.75 x 17 x 20 in.
(4.4 x 43.3 x 50.8 cm) |
| Form factor (rack units) |
1RU |
| Integrated I/O |
8 x 10M/100M/1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10 Gigabit (SFP) Ethernet interfaces |
| Network modules |
8 x 1/10G Options |
| Maximum number of interfaces |
Up to 24 total Ethernet ports, (8x1G RJ-45, 8x1/10G SFP, and network module) |
| Integrated network management ports |
1 x 1/10G SFP |
| Serial port |
1 x RJ-45 console |
| USB |
1 x USB 3.0 Type-A (900mA) |
| Storage |
1x 900 GB, 1x spare slot |
| Power supply configuration |
Single 400W AC, Dual 400W AC optional.
Single/Dual 400W DC optional1 |
| AC input voltage |
100 to 240V AC |
| AC maximum input current |
< 6A at 100V |
| AC maximum output power |
400W |
| AC frequency |
50 to 60 Hz |
| AC efficiency |
89% at 50% load"}">>89% at 50% load |
| DC input voltage |
-48V to -60VDC |
| DC maximum input current |
< 12.5A at -48V |
| DC maximum output power |
400W |
| DC efficiency |
88% at 50% load"}">>88% at 50% load |
| Redundancy |
1+1 AC or DC with dual supplies |
| Fans |
2 hot-swappable fan modules (with 2 fans each)2 |
| Noise |
65 dBA@ 25C
74 dBA maximum |
| Rack mountable |
Yes. Fixed mount brackets optional.
(2- post). Mount rails included (4-post EIA- 310-D rack) |
| Weight |
23 lb (10.5 kg) 1 x power supplies, 1 x NM, fan module, 1x SSD |
| Temperature: operating |
32 to 104°F
(0 to 40°C) |
| Temperature: nonoperating |
-4 to 149°F
(-20 to 65°C) |
| Humidity: operating |
10 to 85%
noncondensing |
| Humidity: nonoperating |
5 to 95% noncondensing |
| Altitude: operating |
10,000 ft (max) |
| Altitude: nonoperating |
40,000 ft (max) |
