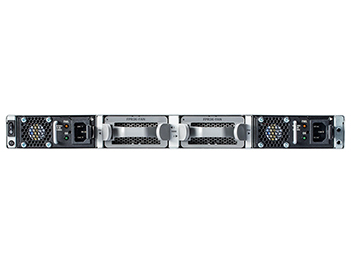

| Datahsheet Cisco FPR3105-NGFW-K9 |
| Specification |
| Features |
3105 |
| Throughput: FW + AVC (1024B) |
10 Gbps |
| Throughput: FW + AVC + IPS (1024B) |
10 Gbps |
| Maximum concurrent sessions, with AVC |
1.5 million |
| Maximum new connections per second, with AVC |
90 |
| TLS1 |
3.2 Gbps |
| Throughput: IPS (1024B) |
10.0 Gbps |
IPSec VPN Throughput
(1024B TCP w/Fastpath) |
5.5 Gbps |
Projected IPSec VPN Throughput
(1024B TCP w/Fastpath) with VPN Offload (FTD 7.2) |
NA |
| Maximum VPN Peers |
2 |
| Local On-device Management |
Yes |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) |
Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| AVC: OpenAppID support for custom, open source, application detectors |
Standard |
| Cisco Security Intelligence |
Standard, with IP, URL, and DNS threat intelligence |
| Cisco Secure IPS |
Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense |
Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
| Cisco Secure Malware Analytics |
Available |
| URL Filtering: number of categories |
More than 80 |
| URL Filtering: number of URLs categorized |
More than 280 million |
| Third-party and open-source ecosystem |
Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
| High availability and clustering |
Active/active, Active/standby. Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis |
| Cisco Trust Anchor Technologies |
Secure Firewall 3100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
| Dimensions (H x W x D) |
1.75 x 17 x 20 in.
(4.4 x 43.3 x 50.8 cm) |
| Form factor (rack units) |
1RU |
| Integrated I/O |
8 x 10M/100M/
1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10 Gigabit (SFP) Ethernet interfaces |
| Network modules |
8 x 1/10G Options |
| Maximum number of interfaces |
Up to 24 total Ethernet ports, (8x1G RJ-45, 8x1/10G SFP, and network module) |
| Integrated network management ports |
1 x 1/10G SFP |
| Serial port |
1 x RJ-45 console |
| USB |
1 x USB 3.0 Type-A (900mA) |
| Storage |
1x 900 GB, 1x spare slot |
| Power supply configuration |
Single 400W AC, Dual 400W AC optional.
Single/Dual 400W DC optional1 |
| AC input voltage |
100 to 240V AC |
| AC maximum input current |
< 6A at 100V |
| AC maximum output power |
400W |
| AC frequency |
50 to 60 Hz |
| AC efficiency |
89% at 50% load"}">>89% at 50% load |
| DC input voltage |
-48V to -60VDC |
| DC maximum input current |
< 12.5A at -48V |
| DC maximum output power |
400W |
| DC efficiency |
88% at 50% load"}">>88% at 50% load |
| Redundancy |
1+1 AC or DC with dual supplies |
| Fans |
2 hot-swappable fan modules (with 2 fans each)2 |
| Noise |
65 dBA@ 25C
74 dBA maximum |
| Rack mountable |
Yes. Fixed mount brackets optional.
(2- post). Mount rails included (4-post EIA- 310-D rack) |
| Weight |
23 lb (10.5 kg) 1 x power supplies, 1 x NM, fan module, 1x SSD |
| Temperature: operating |
32 to 104°F
(0 to 40°C) |
| Temperature: nonoperating |
-4 to 149°F
(-20 to 65°C) |
| Humidity: operating |
10 to 85%
noncondensing |
| Humidity: nonoperating |
5 to 95% noncondensing |
| Altitude: operating |
10,000 ft (max) |
| Altitude: nonoperating |
40,000 ft (max) |
