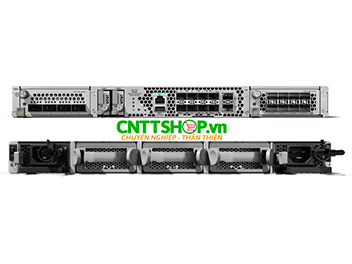

| Datasheet Cisco FPR4225-ASA-K9 |
| Specifications |
| Fixed Ports |
8x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Card Network |
2x Network Module card |
| Integrated Network Management Ports |
2 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Stateful inspection firewall throughput |
95 Gbps |
| Stateful inspection firewall throughput (multiprotocol)2 |
85 Gbps |
| Concurrent firewall connections |
30 Million |
| New connections per second |
1.7 M |
| Max. IPSec VPN throughput (450 Byte UDP L2L test, ASA) |
60 Gbps |
| Maximum VPN Peers |
25,000 |
| Security contexts |
10; 250 (included; maximum) |
| High Availability |
Active/active and active/ standby |
| Clustering |
8 |
| Scalability |
VPN Load Balancing |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager |
Web-based, local management for small-scale deployments |
| Network modules |
● 8-port 1Gbps copper, FTW (fail to wire) Network Module
● Ports that are not configured as FTW can be used as regular 1 Gb copper ports
● 8 x 1/10 Gigabit Ethernet Small Form-Factor Pluggable (SFP+) network modules
● 8 x 1/10/25 Gigabit Ethernet Small Form-Factor Pluggable (SFP28) network modules
● 4 x 40 Gigabit Ethernet Quad SFP+ network modules
● 4 x 40/100/200 Gigabit Ethernet Quad SFP28 (QSFP28) network modules
● 2 x 100G Gigabit Ethernet QSFP SFP28 network modules
● 6-port 1 Gbps SX Fiber FTW (fail to wire) Network Module
● 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module
● 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module
● 6-port 25Gbps LR Fiber FTW (fail to wire) Network Module
● 6-port 25Gbps SR Fiber FTW (fail to wire) Network Module
● 2-port 40G SR FTW (fail to wire) Network Module |
| Maximum number of interfaces |
Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 25 Gigabit Ethernet (SFP28) interfaces with 2 network modules; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules; up to 24 x 1 Gigabit Ethernet ports (SFP) with 2 network modules and fixed ports; up to 8 x 100 Gigabit Ethernet (QSFP28) interfaces with 2 network modules |
| Serial port |
1 x RJ-45 console |
| USB |
1 x USB 2.0 |
| Storage |
1.8 TB x 2 |
| Power |
| Power supplies |
Dual:1900W for 220 AC, 1200W for 110 AC |
| AC input voltage |
100 to 120 VAC (low line) or 200 to 240 VAC (high line) |
| AC maximum input current |
14A, @ 100VAC or @ 200VAC |
| AC maximum Input power |
870W |
| AC frequency |
50/60 Hz (nominal) |
| AC efficiency |
>90% (Platinum) |
| Redundancy |
1+1 |
| Fans |
3 Dual fan modules (FRU). Each module has two fans |
| Rack mountable |
Yes, mount rails included (4-post EIA-310-D rack) |
| Dimensions |
| Dimensions (H x W x D) |
1.73 x 19 x 32 in. (4.4 x 48.3 x 81.4 cm) |
| Form factor (rack units) |
1RU |
| Weight |
43 lbs (19.5 kgs): 2 x power supplies, 2 x NMs, 3 x fan-modules; 33 lbs (15 kgs): no power supplies, no NMs, no fans |
| Temperature: operating |
32 to 104°F (0 to 40°C) |
| Temperature: nonoperating |
-40 to 149°F (-40 to 65°C) |
| Humidity: operating |
5 to 95% noncondensing |
| Humidity: nonoperating |
5 to 95% noncondensing |
