| Ethernet |
| Ethernet Interface |
8x GE RJ45 (including 8x PoE/PoE+ capable ports), 4x GE SFP slots
PoE is 802.3 af
PoE+ is 802.3at |
| Console Interface |
DB9 connector |
| Operating Mode |
Store and forward, L2/L3 wire-speed/non-blocking switching engine |
| MAC Addresses |
8K |
| Switching Capacity |
24 Gbps |
| Packets Per Second |
46 Mpps |
| VLANs Supported |
4K |
| DRAM |
512 MB |
| FLASH |
64 MB |
| Copper RJ45 Ports |
| Speed |
10/100/1000 Mbps |
| MDI/MDIX Auto-crossover |
Support straight or cross wired cables |
| Auto-negotiating |
10/100/1000 Mbps speed auto-negotiation; Full and half duplex |
| PoE+ (PSE) |
IEEE 802.3at, up to 30 W per RJ45 GE port (up to 8 PoE+ ports) |
| SFP (pluggable) Ports |
| Port Types Supported |
Gigabit fiber multimode, fiber single mode, fiber long-haul single mode 1000Base(SX/LX/ZX) |
| Link Aggregation Group Size |
LC typically for fiber (depends on module) |
| Power |
| Power Input |
Redundant input terminals |
| Input Voltage Range |
44–57V DC (for PoE model), 12–57 V (non-PoE model),
44–49V input voltage can support PoE (802.3af) on all ports,
50–57V input voltage can support PoE+ (802.3at) on all ports. |
| Reverse Power Protection |
Yes |
| Switch Power |
With 8x PoE+ sources, the switch itself draws 10.4 W |
| Heat Dissipation |
The switch dissipates 69.6 BTU/h with 8x PoE+ devices attached |
| Indicators |
| Power Status Indication |
Indication of power input status |
| PoE Indication |
PoE port status |
| Ethernet Port Indication |
Link and speed |
| Environment |
| Operating Temperature Range |
-40–167°F (-40–75°C) cold startup at -40°C/°F) |
| Storage Temperature Range |
-40–185°F (-40–85°C) |
| Humidity |
5–95% RH non-condensing |
| MTBF |
> 30 years |
| Cooling |
Fanless |
| Certification and Compliances |
| EMI |
Radiated Emission: CISPR 22, EN55022 Class B
Conducted Emission: EN55022 Class B |
| EMS |
ESD: IEC61000-4-2
Radiated RF (RS): IEC61000-4-3
EFT: IEC61000-4-4
Surge: IEC61000-4-5
Conducted RF (CS): IEC61000-4-6 |
| RoHS and WEEE |
RoHS (Pb free) and WEEE compliant |
| FCC |
Yes |
| ICES |
Yes |
| CE |
Yes, with supplementary EN50155, EN50121-1, EN50121-3-2, EN50121-4, EN 61000-6-4 |
| RCM |
Yes |
| VCCI |
Yes |
| BSMI |
Yes |
| CB |
Yes |
| UL/cUL |
Yes, with additional Class I, Division 2, Groups A, B, C, D |
| ATEX |
ATEX 2218X |
| Mechanical |
| Ingress Protection |
IP30 |
| Installation Option |
DIN-Rail mounting, wall mounting |
| Dimensions |
| Length x Width x Height |
3.8 x 4.15 x 6.06 inches (96.4 x 105.5 x 154 mm) |
| Weight |
2.7 lbs (1230 g) |
| Warranty |
| Fortinet warranty |
Limited lifetime |
Switch
.png){kind=icon}
.png){kind=logo}
.
Bạn đang cần tư vấn về sản phẩm: FSR-112D-POE ?

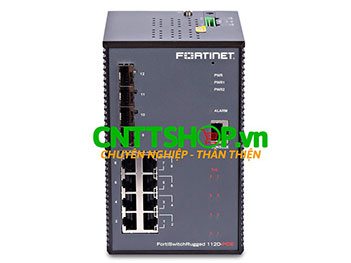

Thiết bị chuyển mạch Fortinet FortiSwitch FSR-112D-POE được thiết kế để sử dụng trong môi trường khắc nghiệt nhé bạn.
