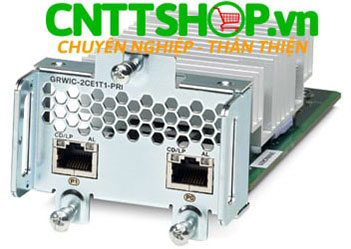

Form Factor
|
- Single-wide GRWIC, no slot restrictions
|
|
Dimensions (H x W x D)
|
- 1 port T1/E1 PRI GRWIC: 2.52 x 3.0 x 7.81 in.
- (6.4 x 7.6 x 19.8cm)
|
|
Weight
|
|
|
LEDs
|
LEDs per port
- Carrier Detect/Loopback (CD/LP):
- Off = No carrier detect
- Green On = Carrier detect
- Yellow On = Port in loopback mode
- Alarm (AL):
- Off = No alarms
- Yellow On = Port in alarm mode
|
|
Ports
|
- 1 T1/E1 ports on RJ-48C connectors
|
|
Line Bit Rate (per Port)
|
- E1: (2.048 Mbps)
- T1: (1.544 Mbps)
|
|
Line Coding
|
- E1: High-density bipolar three (HDB3)
- T1: Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
|
|
Framing Formats
|
- E1: CRC4
- T1: Super Frame (SF) and Extended Super Frame (ESF)
|
|
Output Levels
|
- E1: short-haul/long-haul
- T1 (line build-out [LBO]): 0, -7.5, or -15 dB
|
|
Operating Conditions
|
|
Environmental Substation Compliance
|
IEC 61850-3
IEEE1613
|
|
Operating Temperature
|
-40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range
-40 ºF to 185ºF (-40 to +85ºC) type test for 100 hours at 85ºC
|
|
Shock/Vib
|
30G @11ms |
|
Altitude
|
10,000 ft (3,048 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008 |
|
Relative humidity
|
5 to 95% non-condensing |
|
Non-operating Conditions
|
| Temperature |
–40ºF to 185ºF (–40ºC to 85ºC) |
| Relative humidity |
5 to 95% non-condensing |
| Altitude |
16,000 ft (4,876 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008 |
| Non-Op Free Fall Drop |
4 in. (100 mm) per ENG-339611 |
| Operating Seismic/Earthquake |
NEBS GR-63 (5.4.1) |
| Non-Op Shock/Vib |
40-50G (3.26 m/s minimum) |
| Immunity |
- EN61000-6-2
- EN61000-4-2 (ESD)
- EN61000-4-3 (RF)
- EN61000-4-4 (EFT)
- EN61000-4-5 (SURGE)
- EN61000-4-6 (CRF)
- EN61000-4-11 (VDI)
- EN 55024, CISPR 24
- EN50082-1
|
| Telecom compliance |
- US: TIA-968-A
- CA: CS-03
- EU: TBR1, 2, 4, 12, 13
- RTTE Directive
- Australia: AS/ASIF S016, S038
- Japan: JATE
|
| Telecommunication Interface Industry Standards |
ITU-T G.703, G.704, G.706, G.823, ANSI T1.403 |
| Safety |
- USA: UL 60950-1
- Canada: CAN/CSA C22.2 No. 60950-1
- Europe: EN 60950-1
- China: GB 60950-1
- Australia/New Zealand: AS/NZS 60950-1
- Rest of World: IEC 60950-1
- CSA certified to UL/CSA 60950-1, 2nd Ed.
- CB report to IEC60950-1, 2nd Ed., covering all group differences and national deviations.
|
| EMC Emissions |
- 47 CFR, Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI V-3
- CNS 13438
- EN 300-386
|
