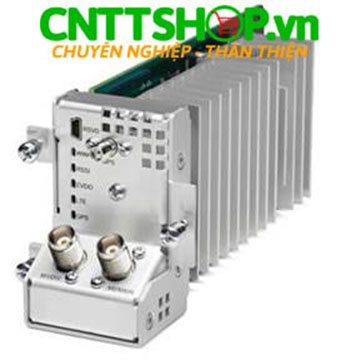

GRWIC-4G-LTE-LA Cisco 2G/3G/4G Multimode LTE GRWIC for L America

Cisco GRWIC-4G-LTE-LA Connected Grid 2G/3G/4G Multimode Long Term Evolution LTE GRWIC for L America, APJC regions module card for Cisco 2010 Connected Grid Router

✓ Mã sản phẩm: GRWIC-4G-LTE-LA

✓ Tình trạng: Còn Hàng

Cisco GRWIC-4G-LTE-LA 2G/3G/4G Multimode LTE GRWIC for L America

Name: GRWIC-4G-LTE-LA
Brand: CISCO
SKU: GRWIC-4G-LTE-LA
Availability: InStock
Rating: 5 (45 reviews)

Cisco Part Number : GRWIC-4G-LTE-LA
Cisco Spare Part Number : GRWIC-4G-LTE-LA=
List Price : $
Giá bán : Liên hệ
Bảo hành : 12 tháng
Made In : Asia

Thông số kỹ thuật

Feature	Description
Form factor	Single-wide GRWIC, no slot restrictions
Dimensions (H x W x D)	- 2.52 x 3.0 x 7.81 in. - (6.4 x 7.6 x 19.8 cm)
Weight	0.9 lb (0.4 kg)
Connections	- Cellular RF ◦ M0/MAIN - primary RF port; TNC - female ◦ M1/DIV - diversity RF port; TNC - female - GPS ◦ SMA - female
LEDs	LEDs per port - Wireless WAN ◦ Off - modem is in reset ◦ Solid green - modem is powered, associated, and authenticated on network ◦ Slow blink - modem is powered, searching for service ◦ Fast blink - data is being transmitted - Received Signal Strength Indication (RSSI) ◦ Off - RSSI is under -100 dBm ◦ Slow green blink - low RSSI ◦ Medium green blink - medium RSSI ◦ Solid green - high RSSI ◦ Solid amber - no service detected - SVC1 ◦ Solid green - LTE is in use ◦ Off - LTE is not in use - SVC2 ◦ Solid green - (HSPA+) service is enabled ◦ Blinking green - EVDO service is enabled ◦ Off - neither HSPA+ nor EVDO service is available - SVC3 ◦ Solid green - GPS service is available ◦ Off - GPS service is not available
Environmental specifications
Operating conditions
Operating temperature	-40 to +60C (-40F to +140F) continuous operating temperature range -40 to +85C (-40 to +185F) type test for 100 hours at 85C
Shock	30G @ 11 ms
Vibration
Altitude	10,000 ft. (3,048 m) maximum operating temperature is de-rated with increasing altitude per IEEE1613-2009
Relative humidity	5 to 95% non-condensing
Non-operating conditions
Temperature	-40 to + 85C (-40 to +185F)
Non-operating relative humidity	5 to 95% non-condensing
Altitude	10,000 ft. (~3000 m); maximum operating temperature is de-rated with increasing altitude per IEEE 1613-2009
Non-operating free-fall drop	4 in. (100 mm)
Operating seismic earthquake	IEC 61850-3, Class S3
Non-operating shock	40-50G (3.26 m/s minimum)
Non-operating vibration
Safety	- USA: UL 60950-1 - Canada: CAN/CSA C22.2 No. 60950-1 - Europe: EN 60950-1 - China: GB 4943 - Rest of world: IEC 60950-1
Regulatory compliance
Emission	- 47 CFR, Part 15: 2016 - ICES-003 Class A: 2016 Iss:6 - EN55032 Class A: 2012 - CISPR32 Class A: 2015:Ed:2 - AS/NZS 3548 Class A: 2012 - VCCI V-3 2010 - CNS 13438: 2006
Immunity	- EN55035:2017 - EN55024:2010:A1 - CISPR24: 2010 + A1: 2015
Telecom	- EN300 386:2012:V1.6.1
Radio	- FCC 47 CFR Part 22,24,27 - RSS 129,132, 133 - AS/NZ ACMA EMR, AS/CA S042.1, 4 - MIC Article 2 Paragraph 1, Item 11-3,7,19 - EN 301 908-1,2,13 - EN 301 489 -1, 52 v2.1.1 - EN 301 489 – 1,3,24 - FCC Part 2.1091 (MPE) - RSS 102 (RF Exposure) - EN 62311 (RF Exposure)
GNSS	EN 303 413 v1.1.1 EN 301 489-1,19
