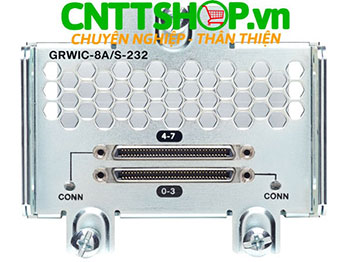

Cisco GRWIC-8A/S-232 8 Ports Async/Sync Serial GRWIC, EIA-232

Environmental Specifications

Operating Conditions

Environmental Substation Compliance

IEC-61850-3

IEEE1613

Operating Temperature

-40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range

-40 ºF to 185ºF (-40 to +85ºC) type test for 100 hours at 85ºC

Shock/Vib

30G @11 ms

Altitude

10,000 ft (3,048 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008

Relative Humidity

5 to 95% non-condensing

Non-operating Conditions

Temperature

–40ºF to 185ºF (–40ºC to 85ºC)

Relative Humidity

5 to 95% non-condensing

Altitude

16,000 ft (4,876 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008

Non-Op Free Fall Drop

4in. (100 mm) per ENG-339611

Operating Seismic/Earthquake

NEBS GR-63 (5.4.1)

Non-Op Shock/Vib

40-50G (3.26 m/s minimum)

Regulatory Compliance and Safety*

Immunity

EN61000-6-2

EN61000-4-2 (ESD)

EN61000-4-3 (RF)

EN61000-4-4 (EFT)

EN61000-4-5 (SURGE)

EN61000-4-6 (CRF)

EN61000-4-11 (VDI)

EN 55024, CISPR 24

EN50082-1

EMC

47 CFR, Part 15

ICES-003 Class A

EN55022 Class A

CISPR22 Class A

AS/NZS 3548 Class A

VCCI V-3

CNS 13438

EN 300-386

Safety

USA: UL 60950-1

Canada: CAN/CSA C22.2 No. 60950-1

Europe: EN 60950-1

China: GB 60950-1

Australia/New Zealand: AS/NZS 60950-1

Rest of World: IEC 60950-1

CSA certified to UL/CSA 60950-1, 2nd Ed.

CB report to IEC60950-1, 2nd Ed., covering all group differences and national deviations

Telecom

US: TIA-968-A

CA: CS-03

EU: TBR1, 2, 4, 12, 13

RTTE Directive

Australia: AS/ASIF S016, S038

Japan: JATE

Telecom Interface Standards

RS-232 GRWIC: RS232, ITU-T V.11

Physical Specifications

Form Factor

Single-wide GRWIC, no slot restrictions

Dimensions

2.52 x 3.0 x 7.81 in. (6.4 x 7.6 x 19.8 cm)

Weight

0.84 lb (0.38 kg)
