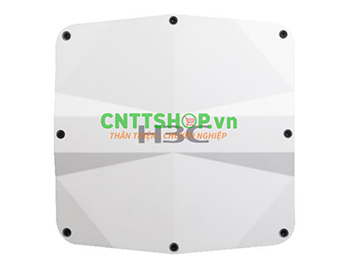

H3C EWP-WA530X-WW-FIT 802.11ac/n Wave 2 Outdoor Access Point.
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật.
| Features | WA530X-WW |
| Weight(excluding mounting accessories) | 1.8kg |
| Dimensions (excluding mounting accessories) | 250 x 250 x 79.5mm |
| Fixed port | Two 10/100/1000M Ethernet ports /support LACP(support between both network ports for redundancy and increased capacity) |
| One 1000M SFP port | |
| One Console port | |
| Antenna | Built-in, directional antenna |
| Radio 1 : 8.6dBi antenna gain @ 5G | |
| Radio 2 : 10.1dBi antenna gain @ 2.4G | |
| Operating frequencies | 802.11ac/n/a : 5.725GHz-5.850GHz; 5.47～5.725GHz; 5.15~5.35GHz |
| 802.11b/g/n : 2.4GHz-2.483GHz | |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
| DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps | |
| MIMO-OFDM (11n): MCS 0-15 | |
| MIMO-OFDM (11ac): MCS 0-9 | |
| Modulation Mode | 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps |
| 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps | |
| 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM | |
| 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM | |
| Maximum transmit power | 2.4GHz: 18dBm |
| 5GHz: 22dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) | |
| Adjustable power | 1dBm |
| Power Source | 802.3at PoE+ |
| PoE Adapter(Optional) | |
| Power consumption | ≤25.5W |
| Protection degree | IP67 |
| Operating temperature/storage temperature | -40 ºC～65 ºC; -30 ºC～55ºC(recommended) /-40ºC～85ºC |
| Operating humidity/storage humidity | 0% to 100% (non-condensing) |
| Safety compliance | IEC 60950-1, EN 60950-1, IEC 60950-22, EN 60950-22 |
| EMC | EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2 |
| Radio frequency certification | EN 300 328, EN 301 893 |
| Health | EN 50385 |
Bạn đang cần tư vấn về sản phẩm: EWP-WA530X-WW-FIT ?
