| Name |

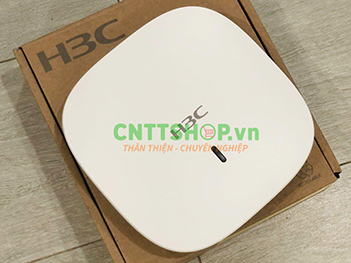

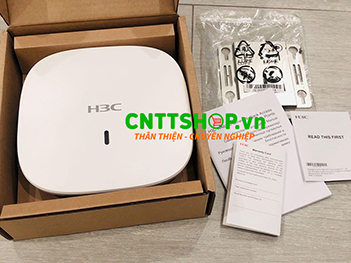

WA6320 |
| Weight (excluding mounting accessories) |
0.4Kg |
| Dimensions (excluding mounting and accessories) |
185mm×185mm×43mm |
| Ethernet ports |
one for 100/1000M RJ45 |
| PoE |
Port1: 802.3af |
| Local Power supply |
54V DC |
| Console port |
One（RJ - 45） |
| Built - in antenna |
Built - in omni - directional antenna |
| 3dBi antenna gain @2.4GHz |
| 5dBi antenna gain @5GHz |
| Built - in Bluetooth |
Built - in Bluetooth 5.0 (Support to switch RFID through software)，Support iBeacon standard |
| Working frequencies |
802.11ax/ac/n/a: 5.725GHz - 5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz |
| 802.11ax/b/g/n : 2.4GHz - 2.483GHz |
| Modulation technology |
OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16 - QAM@24Mbps, 64 - QAM@48/54Mbps |
| DSSS :DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) |
| MIMO - OFDM （11n）: MCS 0 - 31 |
| MIMO - OFDM （11ac）: MCS 0 - 11 |
| MIMO - OFDM （11ax）: MCS 0 - 11 |
| Modulation mode |
11b：DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps |
| 11a/g：OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps |
| 11n：MIMO - OFDM:BPSK, QPSK, 16QAM, 64QAM |
| 11ac：MIMO - OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| 11ax: MIMO - OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum transmit power |
20dBm (Transmit power is multi - chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity |
1dBm |
| Reset/restoration to factory default |
Supported |
| State LED |
Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature / Storage Temperature |
10ºC～55ºC (32°F to 113°F)/ - 40ºC～70ºC (–40°F to +158°F) |
| Working Humidity/Storage Humidity |
5%~95% (non - condensing) |
| Protection class |
IP41 |
| Overall power consumption |
≤12.42W |
| Safety compliance |
GB4943, EN60601 - 1 - 2 (medical electrical equipment), UL/CSA 60950 - 1, EN/IEC 60950 - 1, EN/IEC 60950 - 22 |
| EMC |
GB9254, EN301 489, EN55022, FCC Part 15, RSS - 210 |
| Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| Health |
FCC Bulletin OET - 65C, EN 50385, IC Safety Code 6 |
| MTBF |
>250000H |
