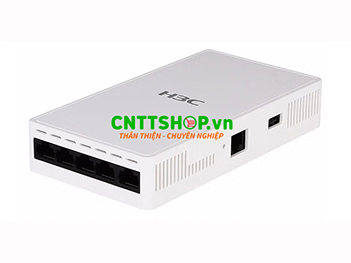

| Name |
WA6320H |
| Weight(excluding mounting accessories) |
0.25Kg |
| Dimensions(excluding mounting and accessories) |
160mm×86mm×30mm |
| Ethernet ports |
Front panel: |
| 4x100/1000Mbps Ethernet ports |
| 1x RJ45 pass-through port |
| 1x USB port |
| 1x Console port |
| Back panel: |
| 1x uplink GE port (100/1000Mbps) |
| 1 x RJ45 pass-through port |
| PoE |
Port1: 802.3af |
| Local Power supply |
54V DC |
| Console port |
One（RJ-45） |
| Built-in antenna |
Built-in omni-directional antenna |
| 3dBi antenna gain @2.4GHz |
| 3dBi antenna gain @5GHz |
| Built-in Bluetooth |
Built-in Bluetooth 5.0(Support to switch RFID through software)，Support iBeacon standard |
| Working frequencies |
802.11ax/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz |
| 802.11ax/b/g/n : 2.4GHz-2.483GHz |
| Modulation technology |
OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
| DSSS :DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps(file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) |
| MIMO-OFDM （11n）: MCS 0-31 |
| MIMO-OFDM （11ac）: MCS 0-11 |
| MIMO-OFDM （11ax）: MCS 0-11 |
| Modulation mode |
11b：DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps |
| 11a/g：OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps |
| 11n：MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM |
| 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM |
| 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum transmit power |
20dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity |
1dBm |
| Reset/restoration to factory default |
Supported |
| State LED |
Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature/ Storage Temperature |
-10ºC～55ºC(32°F to 113°F)/-40ºC～70ºC(–40°F to +158°F) |
| Working Humidity/Storage Humidity |
5%~95%(non-condensing) |
| Protection class |
IP31 |
| Overall power consumption |
≤12.95W（excluding IoT modules） |
| Safety compliance |
GB4943, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC |
B9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
| Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| Health |
FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| MTBF |
>250000H |
