| Features |

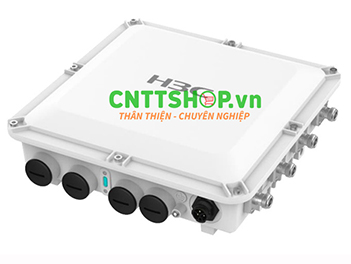

WA6528X-E |
| Weight (excluding mounting accessories) |
3.2kg |
| Dimensions (excluding mounting accessories) |
280 mm (W) x 280 mm (D) x 85 mm (H) |
| Uplink Ethernet ports |
1x100M/1000M/2.5G/5G Ethernet port |
| 2x100/1000M/10G SFP+ |
| Console port |
1×Console port (RJ45) |
| Antenna |
External antenna support 8xN type interface can extend with omni & directional antenna |
| Operating frequencies |
802.11ax/ac/n/a: 5.725GHz-5.850GHz; 5.47-5.725GHz; 5.15-5.35GHz |
| 802.11ax/b/g/n: 2.4GHz-2.483GHz |
| Modulation |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
| DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
| MIMO-OFDM (11n): MCS 0-31 |
| MIMO-OFDM (11ac): MCS 0-9 |
| MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode |
11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps |
| 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps |
| 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM |
| 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum radio power |
24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power |
1dBm |
| BLE |
BLE 5.1 |
| Power Source |
5GE 802.3bt/at/af |
| POE injector |
| Power consumption |
AC powered: ≤43W (110-240V) |
| POE powered: ≤43W (802.3bt) |
| Operating temperature/storage temperature |
Operating Temperature: -30ºC～55ºC |
| Storage Temperature: -40ºC～70ºC |
| Operating humidity/storage humidity |
0% to 100% (non-condensing) |
| Safety compliance |
GB4943, EN/IEC/UL 60950-1, EN/IEC/UL 62386-1 |
| EMC |
EN301 489-1, EN301 489-17, EN50121-4:2016/IEC62236-4:2018, EN 50121-3-2-2006, GB/T 24338.4-2009, GB/T 24338.5-2009, GB/T9254-2008 |
| Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893 |
| Health |
FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| Protection degree |
IP68 |
| MTBF |
>850000 hours |
| Working frequencies and MIMO |
5GHz 4×4:4 MU-MIMO 4.8Gbps
2.4GHz/5GHz 4×4:4 MU-MIMO 1.15Gbps/4.8Gbps |
