| Features |

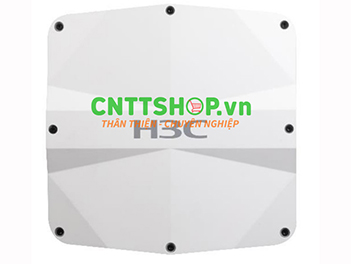

WA6620X |
| Weight(excluding mounting accessories) |
1.8kg |
| Dimensions(H×W×D, excluding mounting accessories) |
250mm x 250mm x 79.5mm |
| Fixed port |
2×100M/1000M Ethernet port, one support IoT extension & PSE ,802.3af
Network ports support link aggregation(LACP) for redundancy and increased capacity
1xSFP
1×Console port (RJ45) |
| Antenna |
Internal directional antenna, antenna gain:11dBi@2.4G/11dBi@5G/ Horizontal beamwidth (HBW): 65 degrees Vertical beamwidth (VBW): 30 degrees
Support extended external antenna |
| Operating frequencies |
802.11ax/ac/n/a : 5.725GHz-5.850GHz; 5.47～5.725GHz; 5.15~5.35GHz
802.11ax/b/g/n : 2.4GHz-2.483GHz |
| Modulation |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
MIMO-OFDM (11n): MCS 0-31
MIMO-OFDM (11ac): MCS 0-9
MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode |
11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum radio power |
2.4GHz: 27dBm
5GHz: 24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power |
1dBm |
| Power Source |
PoE Injector+55V DC Adapter(Optional)
Adapted to 47~57V DC |
| Power consumption |
≤25W(Not included PSE) |
| Operating temperature/storage temperature |
Operating Tem: -30ºC～55ºC(Recommended); -40 ºC～65ºC ; Storage Tem: -40ºC～85ºC |
| Operating humidity/storage humidity |
0% to 100% (non-condensing) |
| Safety compliance |
IEC 60950-1, EN 60950-1, IEC 60950-22, EN 60950-22 |
| EMC |
EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2 |
| Radio frequency certification |
EN 300 328, EN 301 893, FCC Part 15 |
| Health |
FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| Protection degree |
IP68 |
| MTBF |
>500000 hours |
| Working frequencies and MIMO |
5GHz 2×2:2 MU-MIMO 1.2Gbps
2.4GHz, 2×2:2 MU-MIMO 0.575Gbps or
5GHz(1) 2×2:2 MU-MIMO 1.2Gbps
5GHz(2) 2×2:2 MU-MIMO 1.2Gbps dual 5G mode |
