| Name |

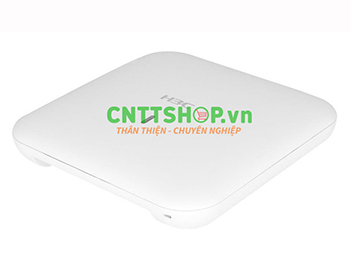

WA6636 |
| Weight(excluding mounting accessories) |
1.05Kg |
| Dimensions(excluding mounting and accessories) |
225mm x 225mm x 46mm |
| Ethernet ports |
1 x 100/1000M/2.5G/5G/10G Rj45
1 x 10/100/1000M Rj45 support IoT extension and Power out
1 x 10/100/1000M Rj45
support LACP(support between both network ports for redundancy and increased capacity)
1 x USB interface |
| PoE |
10GE: IEEE 802.3bt/at
GE1:IEEE 802.3at/af
Both ethernets ports support PoE and they can work simultaneously
GE2: IEEE 802.3af,PSE |
| Local Power supply |
54V DC |
| Console port |
One（RJ-45） |
| Built-in smart antenna |
Built-in omni-directional smart antenna
Radio 1 : 3dBi antenna gain @ 5G
Radio 2 : 3dBi antenna gain @ 5G
Radio 3 : 3dBi antenna gain @ 2.4G |
| Built-in IoT |
Built-in BLE5.0/RFID/Zigbee (Support to switch through software) |
| IoT Extension |
Support BLE5.0, RFID, ZigBee,etc. |
| Working frequencies |
802.11ax/ac wave2/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz
802.11ax/b/g/n : 2.4GHz-2.483GHz |
| Modulation technology |
OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS :DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps(file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps)
MIMO-OFDM （11n）: MCS 0-31
MIMO-OFDM （11ac）: MCS 0-11
MIMO-OFDM （11ax）: MCS 0-11 |
| Modulation mode |
11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM |
| Maximum transmit power |
20 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity |
1dBm |
| Reset/restoration to factory default |
Supported |
| State LED |
Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature/Storage Temperature |
-10ºC～55ºC(32°F to 113°F)/-40ºC～70ºC(–40°F to +158°F) |
| Working Humidity/Storage Humidity |
5%~95%(non-condensing) |
| Protection class |
IP42 |
| Overall power consumption |
≤22.5W（excluding IoT modules） |
| Safety compliance |
GB494, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC |
GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
| Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893 and MIIT SRRC |
| Health |
FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| MTBF |
>250000H |
