Name
|

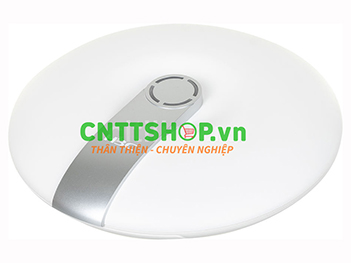

WA6638
|
|
Weight
|
1.28 kg
|
|
Dimensions (H × W × D)
|
52 × 239 × 236 mm (2.05 × 9.41 × 9.29 in)
|
|
Uplink Ethernet ports
|
Port 1: 100/1000M/2.5G/5G/10G, RJ-45
Port 2: 100/1000M, RJ-45
|
|
PoE+
|
Port 1: 802.3bt/at
|
|
Local power supply
|
54 VDC
|
|
Passive Power over Ethernet (48V)
|
Supported
|
|
PoE power out
|
Port 2 (GE)
|
|
Console port
|
One (RJ-45)
|
|
USB port
|
One
|
|
Built-in antenna
|
Built-in omni-directional antenna
3dBi antenna gain @2.4GHz
4dBi antenna gain @5GHz
4dBi antenna gain @5GHz
|
|
Built-in Bluetooth
|
Supported (Support to switch RFID through software)
|
|
IoT Extension
|
BLE, RFID, ZigBee, etc.
|
|
Memory
|
1GB
|
|
Working frequencies
|
802.11ax/ac/n/a: 5.725 to 5.850 GHz; 5.47 to 5.725 GHz; 5.15 to 5.35 GHz
802.11ax/b/g/n: 2.4 to 2.483 GHz
|
|
Modulation technology
|
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps)
MIMO-OFDM (11n): MCS 0-31
MIMO-OFDM (11ac): MCS 0-9
MIMO-OFDM (11ax): MCS 0-11
|
|
Modulation mode
|
11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
|
|
Maximum transmit power
|
2.4G: 25dBm, 5G: 30 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
|
|
Adjustable power granularity
|
1 dBm
|
|
Reset/restoration to factory default
|
Supported
|
|
State LED
|
Alternating flashing mode, orange/green/blue for different working states, breathing mode
|
|
Temperature
|
Operating temperature: -10°C to +55°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
|
|
Humidity
|
Operating: 5% to 95% (non-condensing)
Storage: 5% to 95% (non-condensing)
|
|
Protection class
|
IP42
|
|
Overall power consumption
|
< 30 W (excluding IoT modules and USB)
|
|
Safety compliance
|
GB4943, EN60601-1-2 (medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
|
|
EMC
|
GB9254, EN301 489, EN55022, FCC Part 15, RSS-210
|
|
Radio frequency certification
|
FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC
|
|
Health
|
FCC Bulletin OET-65C, EN 50385, IC Safety Code 6
|
|
MTBF
|
> 250000 hours
|
