| Attribute |

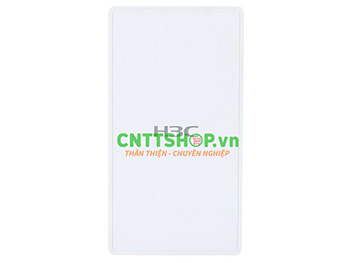

EWP-WA6120H |
| Dimensions (excluding antenna connectors and mounting accessories) |
39×160×86 mm (H x W x D) |
| Fixed port |
UpLink：10/100/1000M×1，RJ-45 |
| LAN：10/100/1000M×4，RJ-45 |
| PoE |
802.3af |
| Local power supply |
54V DC |
| Console port |
1 |
| USB port |
1 |
| Built-in antenna |
Internal Omni-directional antenna |
| 3dBi antenna gain @2.4GHz |
| 4dBi antenna gain @5GHz |
| Working frequencies |
802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz (China); 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz (China) |
| 802.11ax/b/g/n: 2.4 GHz - 2.483 GHz (China) |
| Modulation technology |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
| DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
| MIMO-OFDM(11n): MCS 0-15 |
| MIMO-OFDM(11ac): MCS 0-9 |
| MIMO-OFDM(11ax): MCS 0-11 |
| Modulation mode |
11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps |
| 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps |
| 11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM |
| 11ac/ac wave2: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Transmit power (combined power) |
20 dBm (Varies depending on local laws and regulations) |
| Adjustable power granularity |
1 dBm |
| Power consumption |
≤15W (include USB) |
| Reset/restoration to factory default |
Supported |
| Operating temperature/storage temperature |
-10ºC to +55ºC/-40ºC to +70ºC |
| Operating humidity/storage humidity |
5% - 95% (non-condensing) |
| Safety compliance |
GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1 |
| EMC |
EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17 |
| Environment |
GB/T 2423, GB/T 13543, GB 4208 |
| Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| MTBF |
>850000H |
