| Product |

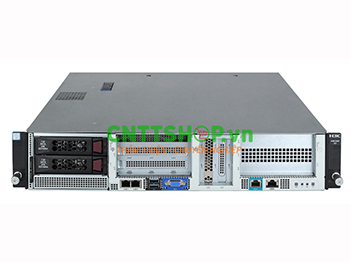

WBC580—G2 |
| CPU |
Intel Xeon 4216, 16 core @2.1GHz |
| Memory |
128GB |
| storage |
4TB*2, Raid 1 |
| Dimensions() |
440mm * 532mm * 87.5mm(including dust screen) |
| weight |
14kg |
| Interface |
2*GE & 2*SFP+ & 1*HDM & 2*USB & 1*VGA |
| Power Supply |
550W power module (no redundant)100V ~ 240VAC; 50 / 60Hz 192 ~ 288v(240vdc HVDC) |
| Overall power consumption |
≤194.1W |
| Operating/storage ambient temperature |
5℃～45℃/—40℃～70℃ |
Relative humidity of working/storage environment
(non-condensing) |
8%90% / 5%95% RH, non-condensing |
| Safety specification |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368-1 |
| EMC |
ICES-003 Issue 6 ANSI C63.4-2014 CISPR 32:2015 EN 55032:2012 EN 55032:2012/AC:2013 EN 55032:2015 AS/NZS CISPR 32:2015 CISPR24 Ed2.0 2010-08 EN55024:2010 EN55024:2010+A1:2015 CISPR 35:2016 EN55035:2017 ETSI EN300 386 V2.1.1（2016-07）EN61000-3-2：2014 EN61000-3-3：2013 VCCI-CISPR32:2016 |
| Basic performance |
| Default management AP number |
0 |
| License step size |
1/8/16/32/128/512/1024 |
| Maximum number of AP |
12K |
| Maximum number of configurable AP |
24K |
| 802.11a |
support |
| 802.11b |
support |
| 802.11g |
support |
| 802.11n |
support |
| 802.11ac |
support |
| 802.11e |
support |
| 802.11h |
support |
| 802.11w |
support |
| 802.11k |
support |
| 802.11r |
support |
| 802.11i |
support |
| 802.11s |
support |
| 802.11v |
support |
| 802.11u |
support |
| Wireless Features |
| Hide SSID |
support |
| 11g Protection |
support |
| User limit |
Support: user limit based on SSID,Radio |
| User online detection |
support |
| User no flow auto aging |
support |
| Multi Country code deployment |
support |
| Wireless user isolation |
support: |
| 1, wireless VLAN wireless user layer 2 Isolation |
| 2. Layer 2 isolation of wireless users based on SSID |
| 40MHz mode 20MHz / 40MHz automatic switching |
support |
| Local forwarding |
Support: local forwarding based on SSID + VLAN |
| CAPWAP |
| Auto input AP serial number |
support |
| AC Discovery(DHCP option43,DNS mode) |
support |
| IPv6 tunnel |
support |
| Clock synchronization |
support |
| Jumbo frame sending |
support |
| Through AC configuration AP basic network parameters |
Support: configure static IP,VLAN, AC address, etc. |
| AP and AC traversal Nat |
support |
| Roaming capability |
| Same AC inside, different AP roaming on the second and third floor |
support |
| Different AC inter,different AP roaming on the second and third floor |
support |
| Access control |
| Open system、Shared—Key |
support |
| Wep64 / 128 , dynamic WEP |
support |
| WPA、WPA2 |
support |
| TKIP |
support |
| CCMP |
Support(recommend) |
| WAPI |
Optional support |
| SSH v1.5/v2.0 |
support |
| Wireless EAD (terminal access control) |
support |
| Portal Authentication |
Support: local and remote servers |
| Portal Page push |
Support: portal page push based on SSID,AP |
| Portal traversal proxy |
support |
| 802.1x Authentication |
EAP—TLS, EAP—TTLS, EAP—PEAP, EAP—MD5, EAP—SIM, EAP Fast, EAP offload( TLS, PEAP only) |
| Local certification |
Support:802.1x,Portal,Mac Authentication |
| LDAP Authentication |
support 802.1x and Portal access
802.1x access time support EAP GTC and EAP TLS |
| User access control based on basic location |
support |
| Visitor access |
support |
| VIP channel |
support |
| ARP anti attack |
Support: Wireless SAVI |
| SSID anti-counterfeiting |
Support: user name and SSID binding |
| Domain based, SSID Select AAA server |
support |
| AAA server backup |
support |
| Local AAA server for wireless users |
support |
| TACACS+ |
support |
| priority mapping |
support |
| QoS |
| L2 l4stream classification |
support |
| rate limiting |
Support: flow control granularity 8kbps |
| 802.11e/WMM |
support |
| Access control based on user profile |
support |
| Intelligent bandwidth limiting algorithm based on bandwidth sharing |
support |
| Intelligent bandwidth limiting algorithm based on per user specified bandwidth |
support |
| Intelligent bandwidth guarantee |
support: |
| When the traffic is not congested, ensure that the packets with different priority SSID can pass freely; when the traffic is congested, ensure that each SSID can maintain its own minimum bandwidth |
| QoS Optimization for SVP phone |
support |
| CAC(Call Admission Control) |
Support: CAC based on the number of users/bandwidth |
| End to end QoS |
support |
| AP upstream speed limit |
support |
| Country code locked |
support |
| Radio resource management |
| Static channel and power setting |
support |
| Dynamic channel and power setting |
support |
| Dynamic rate regulation |
support |
| Detection and compensation of air hole |
support |
| Load balancing dimension |
Support: Based on traffic, user, band(dual band support) |
| Intelligent load balancing |
support |
| AP balanced group |
Support: automatic discovery and flexible setting |
| Static blacklist |
support |
| Security defense |
| Dynamic blacklist |
support |
| White list |
support |
| Illegal AP detection |
Support: Based on SSID,BSSID, device OUI , etc. |
| Illegal AP counter |
Support |
| Preventing wireless flooding attack(flooding attack) |
Support |
| Anti-counterfeiting attack(spoof attack) |
Support |
| Defense weak IV Attack |
Support |
| WIPS |
Support: can achieve 7 layer mobile security defense |
