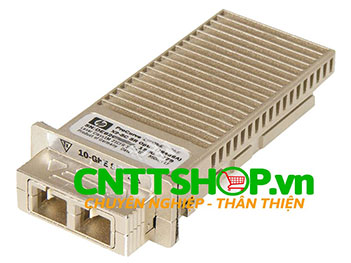

Phân phối Module quang HP J8436A X131 10GBASE-SR X2 SC Duplex, 850nm 300m Multi Mode MMF Transceiver giá tốt, bảo hành 12 tháng
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Module quang HPE J8436A là module quang cho môi trường truyền dẫn Multi Mode với bước sóng là 850 nm, khoảng cách truyền dẫn tối đa là 300m, sử dụng đầu kết nối SC/SC (2 đầu to). Transceiver J8436A là module quang Multi Mode do vậy để đảm bảo SFP hoạt động được thì mọi thứ phải đồng bộ, tức là cáp quang truyền dẫn, dây nhẩy, dây đuôi chuột (Pigtail) phải là Multi Mode.
SFP J8436A còn tương thích với rất nhiều card mạng 10G của HPE Proliant Server, Storage do vậy, transceiver này còn được dùng làm link kết nối cho các máy chủ khi cần kết nối 10G sử dụng cho các ứng dụng truy nhập tốt độ cao như Ảo hóa, Video Streaming, Gaming ... Hoặc các kết nối Cluster, HA (High Avaliable) giữa hai Core Switch, hai Server hay hai Storage.
HP X131 10G X2 SC SR Transceiver (J8436A) HP X131 10G X2 SC SR Transceiver: An X2 format 10-gigabit transceiver with SC connectors using SR technology. |
Ports | 1 SC 10-GbE port (IEEE 802.3ae Type 10GBASE-SR); Duplex: full only |
Connectivity |
Connector type: SC Wavelength: 850 nm |
|
Physical characteristics |
Dimensions: 1.42(w) x 3.48(d) x 0.43(h) in (3.61 x 8.84 x 1.09 cm) Weight: 0.35 lb. (0.16 kg) Transceiver form factor: X2 |
|
Environment |
Operating temperature: 32°F to 158°F (0°C to 70°C) Operating relative humidity: 0% to 95%, noncondensing Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C) Nonoperating/Storage relative humidity: 0% to 95%, noncondensing Altitude:up to 10,000 ft. (3 km) |
|
Electrical characteristics |
Power consumption typical: 1.7 W Power consumption maximum: 2.4 W |
|
Cabling |
Cable type :62.5/125 µm or 50/125 µm (core/cladding) graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively; Maximum distance: - 2-26m with 62.5 µm multimode cable @ 160 MHz*km Cable length: 2-300m Fiber type: Multi Mode |
|
Notes | For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended. | |
Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
