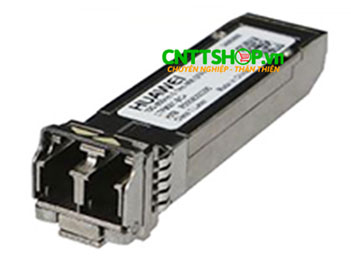

Module quang Huawei 02310CRM OSXD22N00

Part number

02310CRM

Transceiver form factor

SFP+

Transmission speed

10GE

Center wavelength (nm)

1310

Standards compliance

10GBASE-LRM

Connector type

LC

Applicable cable and maximum transmission distance

• Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
• Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
• Multimode fiber (OM1, OM2, OM3): 0.22 km

Transmit power (dBm)

-6.5 to +0.5

Maximum receiver sensitivity (dBm)

-6.5

Overload power (dBm)

1.5

Extinction ratio (dB)

3.5

Operating temperature

0°C to 70°C (32°F to 158°F)
