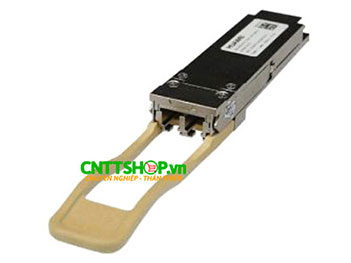

Huawei 02312ELH 40GBase-SDLC

Part number

02312ELH

Version support

Supported in V200R002C50 and later versions

Transceiver form factor

QSFP+

Transmission speed

40GE

Center wavelength (nm)

850

Standards compliance

40GBase-SDLC-PAM4

Connector type

LC

Type of the end face of the fiber ceramic ferrule

PC or UPC

Applicable cable and maximum transmission distance

• Multimode fiber (OM3) (with the diameter of 50 μm): 100 m
• Multimode fiber (OM4) (with the diameter of 50 μm): 150 m

Modal bandwidth

• Multimode fiber (OM3): 2000 MHz*km
• Multimode fiber (OM4): 4700 MHz*km

Transmit power (dBm)

-2.5 to +2.4

Maximum receiver sensitivity (dBm)

-8.0

Overload power (dBm)

2.4

Extinction ratio (dB)

≥ 3

Operating temperature

0°C to 70°C
