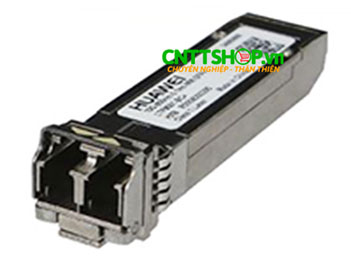

Module quang Huawei 02318169 OMXD30000

Part number

02318169

Transceiver form factor

SFP+

Transmission speed

10GE

Center wavelength (nm)

850

Standards compliance

10GBASE-SR

Connector type

LC

Applicable cable and maximum transmission distance

• Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
• Multimode fiber (OM1): 0.033 km
• Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
• Multimode fiber (OM2): 0.082 km
• Multimode fiber (OM3): 0.3 km
• Multimode fiber (OM4): 0.4 km

Transmit power (dBm)

-7.3 to -1.0

Maximum receiver sensitivity (dBm)

-11.1

Overload power (dBm)

-1.0

Extinction ratio (dB)

3.0

Operating temperature

0°C to 70°C (32°F to 158°F)
