Switch Công Nghiệp H3C IE4300-12P-AC 8 Cổng
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|

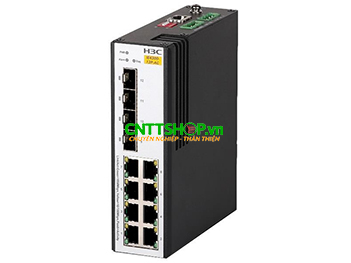

Switch Industrial H3C IE4300-12P-AC có 8 cổng 1G Ethernet và 4 cổng 1G SFP cho tốc độ chuyển mạch lên đến 24Gbps, khả năng chuyển tiếp gói tin lên đến 17Mpps. Switch có khoảng nhiệt độ hoạt động rộng từ -25 đến 60℃, tiếu chuẩn bảo vệ IP40.
Thông số kỹ thuật switch H3C IE4300-12P-AC
| Datasheet H3C IE4300-12P-AC | |
| Specification | |
| Ethernet port | 8x 10/100/1000Base-T Ports |
| Optical port | 4x SFP Ports |
| Performance | |
| Switching capacity | 24 Gbps |
| Packet forwarding rate | 17 Mpps |
| Feature | |
| VLAN | · Port-based VLAN · MAC-based VLAN · Protocol-based VLAN · Voice VLAN · Guest VLAN · QinQ and Selective QinQ · VLAN Mapping |
| MAC Address Table | ·16K MAC Address ·Static MAC Address · Black hole MAC Address · MAC Address Learning Limit |
| ACL | · Time Range-based ACL · Layers 2-4 ACL · IPv4/IPv6 ACL · Ingress ACL · Rate-limited ACL |
| DHCP | DHCP Client · DHCP Snooping · DHCP Snooping Trust · DHCP Snooping option 82 / DHCP Relay option 82 |
| IP Routing | · Routed Port · IPv4 Routing: Static Route, RIP · IPv6 Routing: Static Route, Unicast Route |
| Multicast | · IGMP v1/v2/v3 Snooping ·IGMP Snooping Fast-leave · IGMP Snooping Group-policy · IGMP Snooping Proxy · IPv4/IPv6 Multicast VLAN · MLD v1/v2 Snooping · MVR |
| Spanning Tree | · STP / RSTP / MSTP · STP Root Guard · BPDU Guard · Loop Guard |
| QoS | · Diff-Serv QoS · Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR · 802.1p DSCP remarking |
| Specification Dimensions | |
| Dimensions (H x W x D) | 14.9 x 12.98 x 4.4 cm |
| Weight | ≤ 1 kg |
| Power | |
| Input voltage range | Rated voltage range: 100 to 240 VAC @ 50 or 60 Hz Max voltage range: 85 to 264 VAC @ 45 to 65 Hz |
| Power consumption | MIN: 7W MAX: 12W |
| Operating temperature | -25 to 60℃ |
| Operating humidity | 5% RH to 95% RH |
