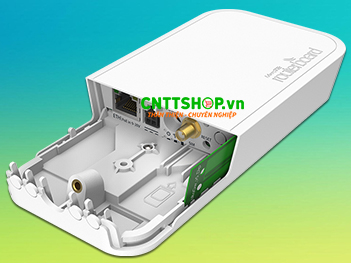

MikroTik IoT Gateway Box wAP LR9 Kit
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật MikroTik wAP LR9 Kit
| Datasheet RBwAPR-2nD&R11e-LR9 | |
| Specification | |
| Architecture |
MIPSBE |
| CPU | QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Suggested price | $169.00 |
| Power | |
| Number of DC inputs | 3 (PoE-IN, DC jack, MicroUSB) |
| DC jack input Voltage | 9-30 V |
| Automotive input Voltage | 9-30 V |
| Max power consumption | 7 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 9-30 V |
| Wireless specifications | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Port | |
| 10/100 Ethernet ports | 1 Ports |
| Peripherals | |
| Number of SIM slots | 1 Modem (Nano SIM) |
| MiniPCI-e slots | 1 Slot |
| Physical parameters | |
| Tested ambient temperature | -40°C to 70°C |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Bạn đang cần tư vấn về sản phẩm: RBwAPR-2nD&R11e-LR9 ?
