Router Industrial Cisco Catalyst IR8140H-K9 Heavy Duty
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật Cisco IR8140H-K9
| Datasheet IR8140H-K9 | |
| Specifications | |

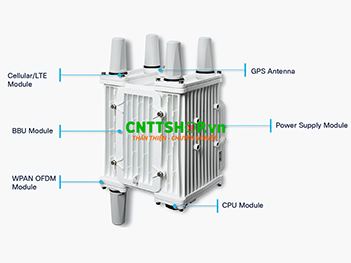

| Modular slots | ● Supervisor module (mandatory) ● Power supply module (mandatory) ● Battery mounting kit (mandatory) ◦ Houses up to 3 Battery Backup Units (BBUs) with smart charging/monitoring ◦ Each BBU is 4 Ah, providing a total of 12Ah with 3 BBU units ● 4 Universal Interface Module (UIM) slots, including CPU supervisor module. |
| GPS/GNSS | Yes |
| Ingress protection rating | IP67 |
| Physical characteristics | |
| Without antennas | 34.04 x 23.87 x 25.15 cm (13.4 x 9.4 x 9.9 in) (H x W x D) |
| With multipurpose antennas | 50.8 x 23.87 x 25.15 cm (20.4 x 9.4 x 9.9 in) (H x W x D) |
| Weight | 30 lb (13.4 kg) |
| Mounting options | Wall, pole mount |
| Supervisor module | |
| Console | RJ-45 |
| WAN interfaces | ● 10/100/1000 Gigabit Ethernet port (copper) ● 10/100/1000 Gigabit Ethernet SFP |
| Default and maximum DRAM | 8 GB |
| Default and maximum flash memory | 8 GB (usable) |
| Backup memory | 4 GB (usable) |
| Edge compute module | 100GB SSD |
| Digital alarms (I/O) | 2 |
| LED | System OK |
| Power specifications | |
| Power supply specifications | 60W AC power supply (100W AC power option available) Operating range: 100 to 240V AC |
| External power options | Option 1: 12V DC out for powering external third-party devices Option 2: 15W of PoE available to power third-party devices (30W using 100W AC) |
| Typical power consumption or dissipation | 18.2W |
| Maximum power consumption or dissipation (with and without charging) |
27W 39.5W (with charging all 3 BBUs) |
| Power consumption (CPU + chassis) | Idle: 10W Typical: 15W Maximum: 16W |
| Power consumption (cellular/WPAN) | Idle: 2W Typical: 3W Maximum: 5W |
| UIMs | |
| IEEE 802.15.4g WPAN (OFDM/FSK) | Supports up to two 900 MHz WPAN modules |
| Cellular modules (LTE Category 4/6/18, 5G sub-6 GHz) |
Supports up to two cellular modules in active/active or active/standby mode |
| Supervisor module | Supports one supervisor module |
Bạn đang cần tư vấn về sản phẩm: IR8140H-K9 ?
Thiết bị định tuyến Cisco IR8140H-K9 có 1 cổng 1GE WAN, 1 cổng 1G SFP WAN bạn nhé
Cisco Catalyst IR8140H-K9 có dung lượng bộ nhớ RAM 8GB bạn nhé
Bộ định tuyến công nghiệp Cisco Catalyst IR8140H-K9 Heavy Duty có thông lượng 30 Mbps bạn nhé
Bộ định tuyến công nghiệp Cisco Catalyst IR8140H-K9 có bộ nhớ Flash 8GB bạn nhé
Router Industrial Cisco Catalyst IR8140H-K9 sử dụng bộ nguồn 60W AC power supply bạn nhé
