| Datasheet Maipu IS420-36GTXF-AC |
| Hardware Specification |
| Physical Traffic Port |

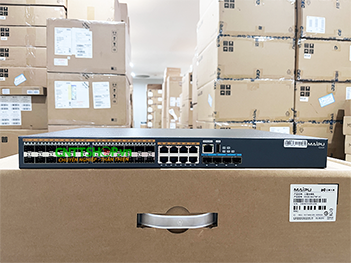

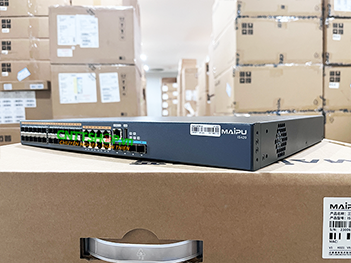

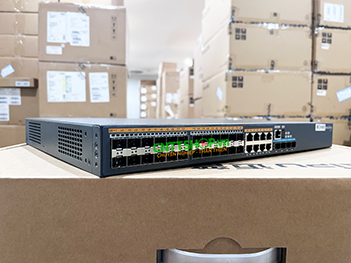

24*1G SFP interfaces
8*10/100M/1000M Base-T interfaces 4*10G SFP+ interfaces |
| Switching Capability |
144Gbps |
| Fixed Power Supply |
Dual |
| Fixed Fan |
Yes |
| Power Consumption |
≤ 60W |
| Dimension (W×D×H) mm |
442×320×44.2 |
| Physical Management Port |
1*RJ45 Console 1*USB2.0 Port |
| Input Voltage |
AC:100-240V/50-60Hz |
| Temperature |
Work Temperature: -5℃ to 50℃ Storage Temperature: -40℃ to 70℃ |
| Humidity |
Work Humidity:10%～90%, non-condensing
Storage Humidity:5%～95%, non-condensing |
| Anti-Lightning |
6KV |
| Anti-Static |
6KV |
| MTBF |
80000 hours |
| Performance Parameters |
| MAC Address Entry |
32K |
| Jumbo Frame |
12K |
| ARP Entry |
8K |
| ND Entry |
8K |
| VLAN Entry |
4K |
| LACP Group |
64 |
| LACP Member in Group |
8 |
| MSTP Instance |
64 |
| IPv4 Routing Entry |
12K |
| IPv6 Routing Entry |
4K |
| L2 Multicast Entry |
6K |
| L3 Multicast Entry |
6K |
| VRF Entry |
256 |
| VRRP Group |
255 |
| Software Specification |
| Interface |
Auto MDI/MDIX , Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control
Loopback Interface, Tunnel Interface, Null Interface
Storm Control, Flood Control, MAC Address Aging Time, Mac Address Learning on|off, Mac Address Learning Limitation, Mac Address VLAN Bunding, MAC Debug |
| VLAN |
VLAN, QinQ, Flexible QinQ, VLAN PVID, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, Private VLAN, Guest VLAN, VLAN Debug, GVRP, VLAN Isolation |
| Ring Protection |
STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard
VIST/VIST+, G.8032(ERPSv1&v2) |
| Link Aggregation |
LACP Link Aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug |
| Error Handling |
Error-disable Based on bpduguard|Dai|DHCP Snooping|Link-Flap|Loopback- detect|Port Security|Storm Control|Transceiver Power, Error-disable Recovery |
| Fault Detection |
ULFD, Track, Loop-back Detection, CFM (802.1ag) |
| IP Services |
ARP, DNS, NTP Server/Client, ICMP, ECMP, GRE, IPIP, IPv6 over IPv4,
ISATAP, IPv4 over IPv6, IPv6 over IPv6
Static Routing v4/v6, RIP/RIPng, OSPF v2/v3, BGP/BGP+, ISIS/ISIS v6, VRRP/VRRP v3, VBRP, PBR/PBR v6, IP-VRF
DHCP v4/v6 Server, DHCP v4/v6 Client, DHCP v4/v6 Relay, DHCP Snooping, DHCP Option51/82 |
| Multicast Protocols |
IGMPv1/v2/v3 Snooping, IGMP Snooping Proxy, MLD Snooping, MVR, MVP
IGMPv1/v2/v3, PIM v4/v6-SM, PIM v4/v6-SSM, PIM-DM, PIM-SDM, |
| QoS |
802.1P Priority, DSCP priority
Three Color Marker, Priority Remark, Traffic Redirect, Traffic Meter, Traffic Mirror
Rate Limit, Traffic Shaping
SP, RR, WRR, WDRR, SP+WRR, SP+WDRR
Tail-drop, RED, WRED |
| Security |
Port Security On aging|deny|permit|violation|ACL
IP Source Guard (ISG), DHCP Snooping, ND Snooping, Host Guard
Dynamic ARP Inspection (DAI), ARP Check, AARF ARP-Guard, ARP Guard, PPPoE+
Standard IP ACL, Extended IP ACL, Standard MAC ACL, Extended MAC ACL, Standard Hybrid ACL, Extended Hybrid ACL, Standard IPv6 ACL, Extended IPv6 ACL, Time-based ACL
Anti-Attack Detect|Drop|Flood|Log, URPF, White List, Black List
AAA, Radius, TACACS+, 802.1x, Portal |
| High Availability |
H-VST, M-VST
MAD LACP, MAD BFD, MAD Fast-Hello, MAD LACP
HA, ULFD, UDLD, G.8032, ULPP, Monitor Link, VRRP, VRRPv3, VBRP, EEP,
BFD with Static|RIP|OSPF|BGP|ISIS |
| Configuration and Maintenance |
SPAN, RSPAN, VLAN SPAN, sFlow, Telemetry, LLDP, IP-SLA
TR069, SNMP v1/v2/v3, MIB, RMON, SYSLOG, WEB(HTTP/HTTPS), CLI,
Telnet, FTP/SFTP/TFTP/FTPS, Debug, Telemetry, ISSU, Hot Patch, Keepalive Gateway, Cloud Management
ZTP Provisioning Through DHCP Server, ZTP Provisioning Through USB Flash Disk |
