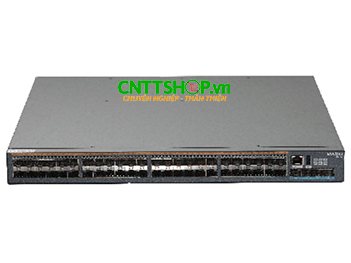

| Datasheet Maipu IS430-54GXF-AC |
| Model |
IS430-54GXF-AC |
| Hardware Specification |
| Physical Traffic Port |
48*1G SFP interfaces 4*10G SFP+ interfaces |
| Extension Slot |
One |
| Switching Capability |
216Gbps |
| Power Slot |
Dual |
| Fixed Fan |
Yes |
| Power Consumption |
≤55W |
| Dimension (W×D×H)mm |
442×420×44.2 |
| Physical Management Port |
1*RJ45 Console 1*USB2.0 Port |
| Input Voltage |
AC:100-240V/50-60Hz |
| Temperature |
Work Temperature: -5℃ to 50℃ Storage Temperature: -40℃ to 70℃ |
| Humidity |
Work Humidity:10%～90%, non-condensing
Storage Humidity:5%～95%, non-condensing |
| Anti-Lightning |
6KV |
| Anti-Static |
6KV |
| MTBF |
80000 hours"}">>80000 hours |
| Performance Parameters |
| MAC Address Entry |
32K |
| Jumbo Frame |
12K |
| ARP Entry |
8K |
| ND Entry |
8K |
| VLAN Entry |
4K |
| LACP Group |
64 |
| LACP Member in Group |
8 |
| MSTP Instance |
64 |
| IPv4 Routing Entry |
12K |
| IPv6 Routing Entry |
4K |
| L2 Multicast Entry |
6K |
| L3 Multicast Entry |
6K |
| VRF Entry |
256 |
| VRRP Group |
255 |
| Software Specification |
| Physical Interface |
Auto MDI/MDIX , Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control |
| Logic Interface |
Loopback Interface, Tunnel Interface, Null Interface |
| MAC Address Management |
Storm Control, Flood Control, MAC Address Aging Time, Mac Address Learning on|off, Mac Address Learning Limitation, Mac Address VLAN Bunding, MAC Debug |
| VLAN Management |
VLAN, QinQ, Flexible QinQ, VLAN PVID, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, Private VLAN, Guest VLAN, VLAN Debug, GVRP, VLAN Isolation |
| Spanning Tree Protocols |
STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard |
| Other Ring Protocols |
VIST/VIST+, G.8032(ERPSv1&v2) |
| LACP Configuration |
LACP Link Aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug |
| Error-disable Configuration |
Error-disable Based on bpduguard|Dai|DHCP Snooping|Link-Flap|Loopback- detect|Port Security|Storm Control|Transceiver Power, Error-disable Recovery |
| Fault Detection Features |
ULFD, Track, Loop-back Detection, CFM (802.1ag) |
| IP Protocol |
ARP, DNS, NTP Server/Client, ICMP, ECMP, GRE, IPIP, IPv6 over IPv4,
ISATAP, IPv4 over IPv6, IPv6 over IPv6 |
| Routing Protocol |
Static Routing v4/v6, RIP/RIPng, OSPF v2/v3, BGP/BGP+, ISIS/ISIS v6, VRRP/VRRP v3, VBRP, PBR/PBR v6, IP-VRF |
| DHCP Service |
DHCP v4/v6 Server, DHCP v4/v6 Client, DHCP v4/v6 Relay, DHCP Snooping, DHCP Option51/82 |
| L2 Multicast Protocols |
IGMPv1/v2/v3 Snooping, IGMP Snooping Proxy, MLD Snooping, MVR, MVP |
| L3 Multicast Protocols |
IGMPv1/v2/v3, PIM v4/v6-SM, PIM v4/v6-SSM, PIM-DM, PIM-SDM, |
| Priority Mapping |
802.1P Priority, DSCP priority |
| Traffic Classification |
Three Color Marker, Priority Remark, Traffic Redirect, Traffic Meter, Traffic Mirror |
| Traffic Control |
Rate Limit, Traffic Shaping |
| Scheduling Algorithm |
SP, RR, WRR, WDRR, SP+WRR, SP+WDRR |
| Congestion Management |
Tail-drop, RED, WRED |
| Port Security |
Port Security On aging|deny|permit|violation|ACL |
| Network Access Control |
IP Source Guard (ISG), DHCP Snooping, ND Snooping, Host Guard |
| Threat Prevention |
Dynamic ARP Inspection (DAI), ARP Check, AARF ARP-Guard, ARP Guard, PPPoE+ |
| Access Control List |
Standard IP ACL, Extended IP ACL, Standard MAC ACL, Extended MAC ACL, Standard Hybrid ACL, Extended Hybrid ACL, Standard IPv6 ACL, Extended IPv6 ACL, Time-based ACL |
| Anti-Attack |
Anti-Attack Detect|Drop|Flood|Log, URPF, White List, Black List |
| AAA |
AAA, Radius, TACACS+, 802.1x, Portal |
| Device Virtualization |
H-VST, M-VST |
| Multi-Active Detection |
MAD LACP, MAD BFD, MAD Fast-Hello, MAD LACP |
| High Availability Protocols |
HA, ULFD, UDLD, G.8032, ULPP, Monitor Link, VRRP, VRRPv3, VBRP, EEP,
BFD with Static|RIP|OSPF|BGP|ISIS |
| Monitoring and Diagnostics |
SPAN, RSPAN, VLAN SPAN, sFlow, Telemetry, LLDP, IP-SLA |
| Device Management |
TR069, SNMP v1/v2/v3, MIB, RMON, SYSLOG, WEB(HTTP/HTTPS), CLI,
Telnet, FTP/SFTP/TFTP/FTPS, Debug, Telemetry, ISSU, Hot Patch, Keepalive Gateway, Cloud Management |
| Zero Touch Provisioning |
ZTP Provisioning Through DHCP Server, ZTP Provisioning Through USB Flash Disk |
