Phân phối Module quang HP J8437A X131 10GBASE-LR X2 SC Duplex, 1310nm 10km Single Mode SMF Transceiver giá tốt, bảo hành 12 tháng
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Module quang HPE J8437A là module quang cho môi trường truyền dẫn Single Mode với bước sóng là 1310 nm, khoảng cách truyền dẫn tối đa là 10km, sử dụng đầu kết nối SC/SC (2 đầu to). Transceiver J8437A là module quang Single Mode do vậy để đảm bảo SFP hoạt động được thì mọi thứ phải đồng bộ, tức là cáp quang truyền dẫn, dây nhẩy, dây đuôi chuột (Pigtail) phải là Single Mode.
SFP J8437A còn tương thích với rất nhiều card mạng 10G của HPE Proliant Server, Storage do vậy, transceiver này còn được dùng làm link kết nối cho các máy chủ khi cần kết nối 10G sử dụng cho các ứng dụng truy nhập tốt độ cao như Ảo hóa, Video Streaming, Gaming ... Hoặc các kết nối Cluster, HA (High Avaliable) giữa hai Core Switch, hai Server hay hai Storage.

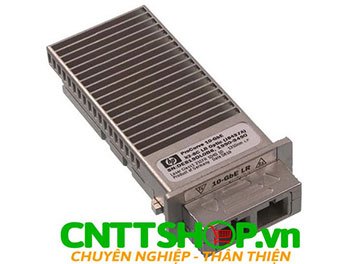

HP X131 10G X2 SC LR Transceiver (J8437A) An X2 form-factor transceiver that supports the 10-Gigabit LR standard, providing 10-Gigabit connectivity up to 10 km on single-mode fiber |
Ports | 1 SC 10-GbE port (IEEE 802.3ae Type 10GBASE-LR); Duplex: full only |
Connectivity |
Connector type: SC Wavelength: 1310 nm |
|
Physical characteristics |
Dimensions: 1.42(w) x 3.48(d) x 0.43(h) in (3.61 x 8.84 x 1.09 cm) Weight: 0.35 lb. (0.16 kg) Transceiver form factor: X2 |
|
Environment |
Operating temperature: 32°F to 158°F (0°C to 70°C) Operating relative humidity: 0% to 95%, noncondensing Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C) Nonoperating/Storage relative humidity: 0% to 95%, noncondensing Altitude:up to 10,000 ft. (3 km) |
|
Electrical characteristics |
Power consumption typical: 2 W Power consumption maximum: 3 W |
|
Cabling |
Cable type : Low metal content, single-mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2 Type B1; Maximum distance: 10 km Cable length: 2m to 10km with 9/125 ìm single-mode cable Fiber type: Single Mode |
|
Notes | Conditioning patch cord cables are not supported For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended |
|
Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
Bạn đang cần tư vấn về sản phẩm: #J8437A ?
