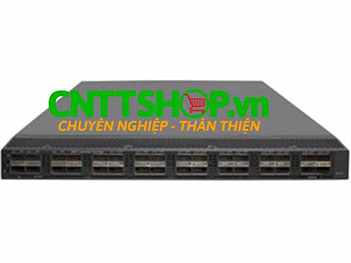

Switch HPE FlexNetwork 5940 32-port 40GbE QSFP+ with 2 Fans 2 Power Supply
HPE Part Number : JH686A
Bảo hành : 12 tháng
Made In : China
Stock : Hàng có sẵn
Mô tả sản phẩm
Thiết bị chuyển mạch HPE JH686A được thiết kế để hoạt động phù hợp cả 3 lớp mạng (lớp truy nhập mạng đầu cuối) với chi phí đầu tư là thấp trong dòng HPE FlexFabric 5940 Switch Series.
Thiết bị chuyển mạch HPE JH686A tăng cường bảo mật bằng cách sử dụng các công nghệ virtual LANs, link aggregation, hoặc IGMP Snooping boost uplink performance, và loop prevention enhances network reliability. Switch HPE JH686A sử dụng điện AC 220V.
Thông số kỹ thuật chi tiết của thiết bị chuyển mạch HPE JH686A:
| I/O ports and slots |
32 QSFP+ 40GbE ports |
| Additional ports and slots |
1 RJ-45 serial console port |
| Power supplies |
2 power supply slots |
| Fan tray |
2 fan tray slots This system requires two same-direction airflow fan trays to function properly. The system should not be operated with only one fan tray for more than 24 hours. The system should not be operated without a fan tray for more than two minutes. |
| Physical characteristics |
Dimensions: 17.32(w) x 25.98(d) x 1.74(h) in (44.00 x 66.0 x 4.42 cm) |
| Memory and processor |
1 GB flash; Packet buffer size: 12.2 MB, 4 GB SDRAM |
| Mounting and enclosure | |
| Performance |
10 Gbps Latency < 1 µs (64-byte packets) |
| Environment |
Operating temperature: 32°F to 113°F (0°C to 45°C) |
| Electrical characteristics |
Frequency: 50/60 Hz 90 - 264 VAC, rated (depending on power supply chosen) Maximum power rating: 409 W |
| Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products- Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions |
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) |
| Management | IMC - Intelligent Management Center; Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP |
Các loại Module quang HPE được sử dụng cho switch HPE JH686A:
JH679A HPE X140 40G QSFP+ MPO SR4 Campus-Transceiver
JL306A HPE X140 40G QSFP+ LC ER4 40km SM Transceiver
JH677A HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Campus-Transceiver
JH681A HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Campus-Transceiver
JH678A HPE X140 40G QSFP+ LC BiDi 100m MM Campus-Transceiver
JL286A HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
Các loại cable DAC HPE - Direct attack copper sử dụng cho switch HPE JH686A:
JH697A HPE X240 40G QSFP+ to QSFP+ 1m Direct Attach Copper Campus-Cable
JH698A HPE X240 40G QSFP+ to QSFP+ 3m Direct Attach Copper Campus-Cable
JH699A HPE X240 40G QSFP+ to QSFP+ 5m Direct Attach Copper Campus-Cable
JG329A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JH700A HPE X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Campus-Cable
JG331A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JL287A HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
JL288A HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
JL289A HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
Các loại nguồn Switch HPE sử dụng cho switch HPE JH686A:
JC680A HPE 58x0AF 650W AC Power Supply
JC681A HP 58x0AF 650W DC Power Supply
