Nguồn switch Aruba CX 4000i JL819A PoE
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
|

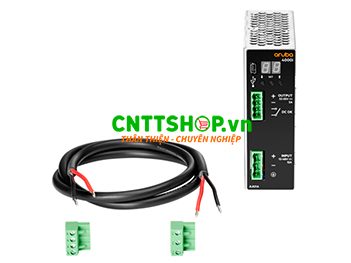

Aruba 4000i JL821A POE 54VDC 240W 12-48VDC DIN Power Supply |
||
|
Description |
DC input voltage |
|
|
1x micro-USB interface for control and monitoring 1x LCD Display 1x Input socket 1x Output socket |
||
| Physical Characteristics | ||
|
Dimensions |
(H) 115 mm x (W) 40 mm x (D) 110 mm (4.52" x 1.57" x 4.33") |
|
| Configuration Weight |
0.4 kg (0.88 lbs) |
|
| Environment | ||
|
Operating temperature |
-40°C to 70°C with derating |
|
| Operating Relative Humidity |
5% to 95%, non-condensing |
|
| Non-Operating |
-40°C to 80°C (-40°F to 176°F ) |
|
| Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
| Max Operating Altitude |
up to 4 km (13123 ft) Max |
|
| Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
| Electrical Characteristics | ||
|
Frequency |
N/A |
|
| AC voltage |
N/A |
|
| DC Input Voltage |
12V-48V nominal UL Certified to: 11V-55V |
|
| Current |
12A |
|
| Dynamics | ||
|
Vibration |
IEC 60068-2-6 |
|
|
Shock |
IEC 60068-2-27 |
|
|
Mounting and Enclosure |
Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19" telco rack or equipment cabinet which has DIN rail installed. |
|
|
DIN rail mounting. |
||
|
Vertical mounting only. |
||
| Wire | ||
|
Power Input |
AWG 12 |
|
| Power Output |
AWG 14 up to 2m |
|
| PoE Budget | ||
|
Input operating range |
Nominal to 12-48 VDC UL certified to 11-55 VDC |
|
| PoE Power Budget below 50°C ambient (-40°C to 50°C) |
180W with input = 48V-55V DC 150W with input = 24V DC 60W with input = 12V DC |
|
| PoE Power Budget with 60°C ambient |
150W with input = 48V-55V DC 150W with input = 24V DC 60W with input = 12V DC |
|
| PoE Power Budget with 70°C ambient |
150W with input = 48V-55V DC 150W with input = 24V DC 50W with input = 12V DC |
|
