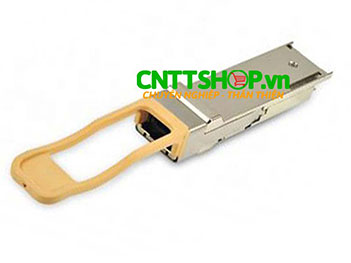

Juniper QSFPP-40GBASE-SR4
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật:
| Part Number | 740-067443 |
| Old Part Number(s) | 740-046565 |
| Model Type | 40 Gigabit Ethernet |
| Transceiver Type | QSFP+ |
| Connector | 12-fiber MPO |
| Monitoring Available | Yes |
| Digital Optical Monitoring | Yes |
| Standard: 40GBASE-SR4 | |
| Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4) | IEEE 802.3ba-2010 |
| Diagnostic support |
Laser bias current–supported
RX input power–supported
Case temperature–supported
Power supply voltage–supported
Laser output power–not supported
|
| Transmitter wavelengths (range) | 840 nm through 860 nm |
| Transmitter output power, each lane (minimum) | –7.6 dBm |
| Transmitter output power, each lane (maximum) | 2.4 dBm |
| Receiver input power, each lane (minimum) |
–9.5 dBm for OM3
–9.1 dBm for OM4
|
| Receiver input power, each lane (maximum) |
2.4 dBm for OM3
2.4 dBm for OM4
|
| Cable type | Multimode |
| Distance |
OM3 MMF cable, 100 m
OM4 MMF cable, 150 m
|
| Operating Temperature (range) | 0° C to 70° C |
| Storage temperature | –40° C to 85° C |
Bạn đang cần tư vấn về sản phẩm: QSFPP-40GBASE-SR4 ?
