Thiết bị chuyển mạch H3C LS-5024PV3-EI-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|

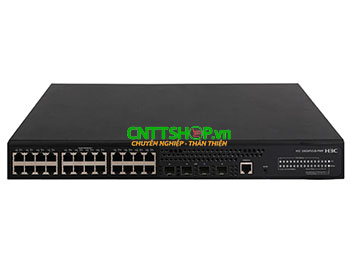

LS-5024PV3-EI-GL. Switch managed layer 2 H3C S5024PV3-EI L2 có 24x 10/100/1000BASE-T ports và 4x 1000BASE-X ports, 1x console port. Switching capacity 56Gbps, Packet forwarding rate 42Mpps.
Thông số kỹ thuật switch H3C LS-5024PV3-EI-GL
| Datasheet H3C LS-5024PV3-EI-GL | |
| Specification | |
| Fixed ports | 24x 10/100/1000 Base-T ports 4x 1G SFP ports |
| Management Ethernet ports | 1x RJ-45 console RJ45 port |
| Copper port features | Half-duplex, full-duplex, auto-negotiation MDI/MDI-X |
| Performance | |
| Switching capacity | 56 Gbps |
| Packet forwarding rate | 42 Mpps |
| Feature | |
| Ethernet functions | LLDP Static MAC configuration MAC address learning limit (up to 8K) Port mirror and flow mirror Link aggregation (up to 8 ports per group) Port isolation STP/RSTP/MSTP IEEE 802.3ad（Dynamic link aggregation）, static port aggregation |
| VLAN | 802.1Q ( up to 4K VLAN) Protocol-based VLAN IP subnet based VLAN MAC based VLAN GUEST VLAN |
| IP routing | Static routing |
| DHCP | DHCP Relay DHCP Client DHCP Snooping DHCP Snooping Option82 |
| ACL | ACL on layer 2, layer 3 and layer 4 ACL on IPv4, IPv6 VLAN ACL |
| Reliability | Hot patch, in-service patch upgrade |
| Security | Hierarchical user management and password protection SSHv2 SSL Specific IP address based FTP logging and password mechanism Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet Prevent Dos attack IP＋MAC+PORT+VLAN binding IEEE 802.1x SAVI source address validity authentication Radius, HWTACACS SNMPv3 Broadcast suppression Prevent CPU attack |
| System management | Console/AUX Modem/Telnet/SSH2.0/CLI Loading and upgrading through FTP/TFTP/Xmodem/SFTP SNMP V1/V2c/V3 NTP System log Cluster management |
| Specification Dimensions | |
| Dimensions (W × D x H) | 44 x 16 x 4.36 cm |
| Weight | ≤2.5kg |
| Power | |
| Input voltage range | AC: 100V～240V AC，50/60Hz DC: –54 VDC to –57 VDC |
| Power consumption | ≤ 23W |
| Environment temperature | Operating temperature：-5℃~45℃ Storage temperature：-40℃~70℃ |
| Environment humidity | Operating humidity：5%~95% , non-condensing Storage humidity：5%~95% , non-condensing |
