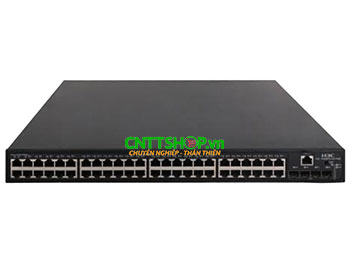

Managed Switch PoE+ H3C LS-5048PV3-EI-PWR-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch H3C L2 Ethernet LS-5048PV3-EI-PWR-GL (S5048PV3-EI-PWR) có 48 cổng 1GE RJ45 PoE+ (tổng công suất PoE với nguồn AC là 370W và với nguồn DC là 740W), 4 cổng 1G SFP, hỗ trợ các loại nguồn AC và DC. Khả năng chuyển mạch 104Gbps, tốc độ chuyển gói tin lên đến 78Mpps.
Thông số kỹ thuật switch H3C LS-5048PV3-EI-PWR-GL
| Datasheet H3C LS-5048PV3-EI-PWR-GL | |
| Specification | |
| Fixed ports | 48x 10/100/1000 Base-T PoE+ ports 4x 1G SFP ports |
| Management Ethernet ports | 1x RJ-45 console RJ45 port |
| Copper port features | Half-duplex, full-duplex, auto-negotiation MDI/MDI-X |
| Performance | |
| Switching capacity | 104 Gbps |
| Packet forwarding rate | 78 Mpps |
| Feature | |
| VLAN | 802.1Q ( up to 4K VLAN) Protocol-based VLAN IP subnet based VLAN MAC based VLAN GUEST VLAN |
| IP routing | Static routing |
| DHCP | DHCP Relay DHCP Client DHCP Snooping DHCP Snooping Option82 |
| ACL | ACL on layer 2, layer 3 and layer 4 ACL on IPv4, IPv6 VLAN ACL |
| Reliability | Hot patch, in-service patch upgrade |
| Security | Hierarchical user management and password protection SSHv2 SSL Specific IP address based FTP logging and password mechanism Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet Prevent Dos attack IP＋MAC+PORT+VLAN binding IEEE 802.1x SAVI source address validity authentication Radius, HWTACACS SNMPv3 Broadcast suppression Prevent CPU attack |
| System management | Console/AUX Modem/Telnet/SSH2.0/CLI Loading and upgrading through FTP/TFTP/Xmodem/SFTP SNMP V1/V2c/V3 NTP System log Cluster management |
| Specification Dimensions | |
| Dimensions (W × D x H) | 44 x 40 x 4.36 mm |
| Weight | ≤ 6kg |
| Power | |
| Input voltage range | AC: 100V～240V AC，50/60Hz DC: –54 VDC to –57 VDC |
| Power consumption | AC≤ 467W DC≤ 807W |
| PoE+ | AC 370W DC 740W |
| Environment temperature | Operating temperature：-5℃~45℃ Storage temperature：-40℃~70℃ |
| Environment humidity | Operating humidity：5%~95% , non-condensing Storage humidity：5%~95% , non-condensing |
Bạn đang cần tư vấn về sản phẩm: LS-5048PV3-EI-PWR-GL ?
