| Interface Specification |
| Interface |
1*10/100/1000M Base-T adaptive Ethernet Port, 802.3af PoE (LAN0)

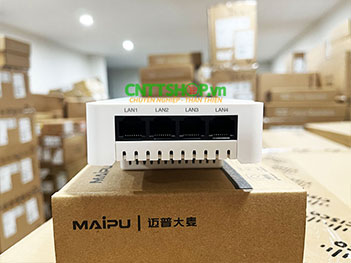

4*10/100/1000M Base-T adaptive Ethernet Port (LAN1-LAN4)
|
| Power Interface |

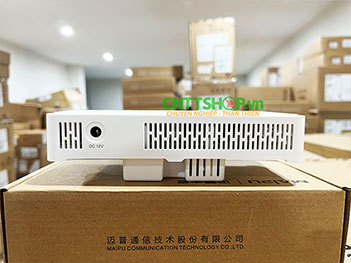

1* 12VDC (Nominal, +/- 5%)
|
| Indicators |
1* Green LED (For System and Radio status) |
| Other Port |

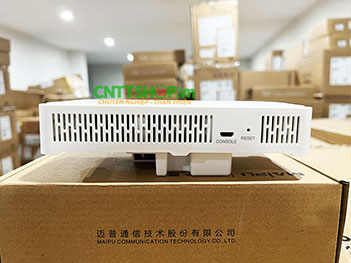

1* Reset Button (Factory reset) |
| Environment Specification |
| Working Temperature |
0℃ to +45℃ |
| Working Humidity |
10% to 90% non-condensing |
| Storage Temperature |
-40℃ to +70℃ |
| Storage Humidity |
5% to 95% non-condensing |
| IP Rating |
IP41 |
| Weight |
0.3 kg |
| Dimension (W*D*H) mm |
162*86*44.5 |
| Hardware Specification |
| Installation Mode |

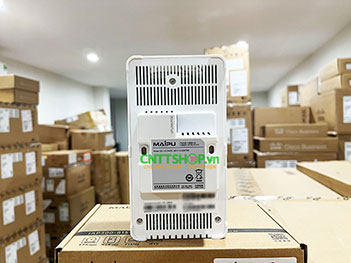

Wall Mounting |
| Power Supply |
Adapter: DC 12 V/1.5 A (optional)
PoE Standard: IEEE 802.3af / 802.3at |
| Power Consumption |
<12W |
| Wireless Specification |
| RF Design |
Dual-radio design, one 2.4 GHz radio and one 5 GHz radio
- Radio1: 2.4 GHz, 2 streams: 2*2
- Radio2: 5 GHz, 2 streams: 2*2
|
| Operating Bands |
- Radio1: 2.400 to 2.4835GHz
- Radio2: 5.150–5.350GHz, 5.47–5.725GHz, 5.725–5.850GHz
|
| Transmission Rate |
- 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps
- 802.11a/g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps
- 802.11n: 6.5Mbps-300Mbps (MCS0-MCS31, HT20-HT40), 400Mbps with 256-QAM
- 802.11ac: 6.5Mbps-866Mbps (MCS0-MCS9, NSS=1-2, VHT20-VHT160)
- 802.11ax (2.4GHz): 8.6Mbps-574Mbps (MCS0-MCS11, NSS=1-2, HE20-HE40)
- 802.11ax (5GHz): 8.6Mbps-1,202Mbps (MCS0-MCS11, NSS = 1-2, HE20-HE80)
|
| Antenna |
Internal 4 Antennas |
| Antenna Gain |
2.4 GHz: 4.0dBi
5 GHz: 4.0dBi
|
| Transmit Power |
2.4 GHz: +20 dBm
5 GHz: +20 dBm
|
| Modulation and Encoding |
- Low Density Parity Check (LDPC)
- Maximum Likelihood Detection (MLD)
- Beamforming |
| Advanced RF Features |
- Channel Rate Adjustment, include TPC (Transmit Power Control)
- ACS (Automatic Channel Scanning) |
| Fast Roaming |
- 802.11 K/V/R |
| Rate Limitation |
- Based On SSIDs
- Based On Users |
| Load Balancing |
- Based On Users |
| Software Specification |
| WIFI Standards |
- IEEE 802.11a/b/g/n/ac/ax |
| SSID Numbers |
16*SSIDs (2.4GHZ+5GHZ) |
| Channelization |
20, 40, 80 MHz |
| STA Capacity |
512 |
| Working Mode |
FIT/FAT Mode |
| Network Features |
PPPoE Client, DHCP Server/Client, Static IP, DNS Proxy, Bridge, NAT
(Note: FAT Working Mode) |
| Security Type |
Open, PSK, WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, Portal, 802.1X, Radius |
| Data Rate |
- Radio1: 2.4 GHz, 574 Mbps
- Radio2: 5 GHz, 1201 Mbps
- Combined: 1.775 Gbps
|
| IMO Technologies |
- Multi-User Multiple Input Multiple Output (MU-MIMO)
- Maximum Ratio Combining (MRC)
- Space-Time Block Coding (STBC)
- Cyclic Delay/Cyclic Shift Diversity (CDD/CSD)
- Dynamic MIMO power saving
|
| Energy Saving |
- U-APSD
- Green AP mode
|
| Advanced WIFI Features |
- Orthogonal Frequency Division Multiple Access (OFDMA)
- Short GI (Short Guard Interval)
- DFS (Dynamic Frequency Selection)
- Spectrum Navigation
|
