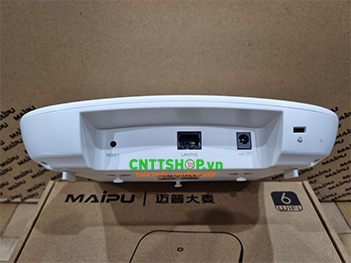

Interface Specification

Service Port

1*10/100/1000Mbps Base-T adaptive Ethernet Port, 802.3at PoE

Power Interface

1*12VDC (Nominal, +/-5%)

Indicators

1*Multi-Color LED (For System and Radio status)

Reset Button

1*Rest Button (Factory reset; WPS)

Environment Specification

Working Temperature

0℃ to +45℃

Working Humidity

10% to 90% non-condensing

Storage Temperature

-40℃ to +70℃

Storage Humidity

5% to 95% non-condensing

IP Rating

IP51

Weight

0.62 kg

Dimension(W*D*H) mm

197*197*58

Hardware Specification

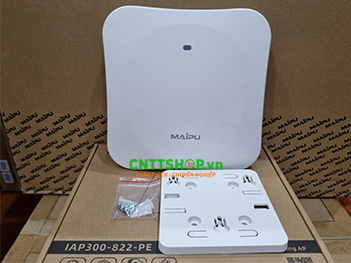

Installation Mode

Ceiling Mounting

Power Supply

Adapter: DC 12V/1.5A (optional)

PoE Standard: IEEE 802.3at

When both DC and PoE power sources are available, DC power takes priority over PoE.

Power Consumption

<13W (without USB output)

Wireless Specification

RF Design

Dual-band design:

- Radio1: 2.4GHz, 2 streams: 2*2

- Radio2: 5GHz, 2 streams: 2*2

Operating Bands

- Radio1: 2.400-2.4835GHz

- Radio2: 5.150–5.350GHz, 5.47–5.725GHz, 5.725–5.850GHz

Transmission Rate

- 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps

- 802.11a/g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps

- 802.11n: 6.5Mbps-300Mbps (MCS0-MCS31, HT20-HT40), 400Mbps with 256-QAM

- 802.11ac: 6.5Mbps-866Mbps (MCS0-MCS9, NSS=1-2, VHT20-VHT160)

- 802.11ax (2.4GHz): 8.6Mbps-574Mbps (MCS0-MCS11, NSS=1-2, HE20-HE40)

- 802.11ax (5GHz): 8.6Mbps-2,402Mbps (MCS0-MCS11, NSS = 1-2, HE20-HE160)

Antenna

Internal 4 Antennas

Antenna Gain

2.4GHz: 4.0dBi

5GHz: 4.0dBi

Transmit Power

2.4GHz: +23dBm

5GHz: +23dBm

The actual transmit power complies with the regulatory requirements for radio frequency emissions in various countries and regions

Transmit Power Adjustment

1 dBm

Modulation Mode

- 802.11b: BPSK, QPSK, CCK

- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Modulation and Encoding

- Low Density Parity Check (LDPC)
- Maximum Likelihood Detection (MLD)

Advanced RF Features

- TPC (Transmit Power Control)
- ACS (Automatic Channel Scanning)

Fast Roaming

- 802.11 K/V/R

Rate Limitation

- Based On SSIDs
- Based On Users

Load Balancing

- Based On Users

Software Specification

WIFI Standards

IEEE 802.11a/b/g/n/ac/ax

SSID Numbers

32*SSIDs (2.4GHZ+5GHZ)

Channelization

20, 40, 80, 160 MHz

STA Capacity

512

Working Mode

FIT/FAT Mode

Network Features

PPPoE Client, DHCP Server/Client, Static IP, DNS Proxy, Bridge, NAT

(Note: FAT Working Mode)

Security Type

Open, PSK, WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, Portal, 802.1X, Radius

Working Bandwidth

- 802.11ax: HE160, HE80, HE40, HE20

- 802.11ac: VHT160, VHT80, VHT40, VHT20

- 802.11n: HT40, HT20

Data Rate

- Radio1: 2.4GHz, 574Mbps

- Radio2: 5GHz, 2.402Gbps

MIMO Technologies

- Multi-User Multiple Input Multiple Output (MU-MIMO)
- Maximum Ratio Combining (MRC)
- Space-Time Block Coding (STBC)
- Cyclic Delay/Cyclic Shift Diversity (CDD/CSD)
- Dynamic MIMO power saving

Energy Saving

- U-APSD
- Green AP mode

Advanced WIFI Features

- Orthogonal Frequency Division Multiple Access (OFDMA)
- Short GI (Short Guard Interval)
- DFS (Dynamic Frequency Selection)
- Spectrum Navigation
