| Hardware Specifications |
| Model |

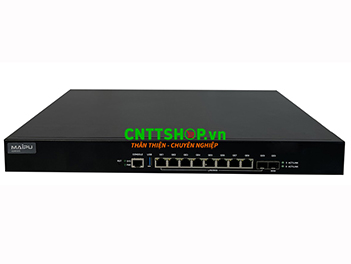

IGW500-500 |
| Hardware Version |
V1 |
| Performance (1500Byte) |
1Gbps |
| Flash |
4G |
| Memory |
1G |
| Max. Managed APs |
Gateway mode: 64 Units |
| Controller mode: 128 Units |
| Physical Ports |
8*1000M RJ45 + 2*1000M SFP |
| Management Interfaces |
One console port, One USD2.0 port |
| Power Supply |
Fixed One AC Power, Input Voltage (AC): 100-240V，50-60Hz |
| Dimension (W×D×H) |
440×330×44.2mm(1U) |
| Power Lightning Protection |
6KV for both common mode and differential mode are 6kV |
| Temperature |
Work temperature: 0-45℃ |
| Storage temperature: -40–70℃ |
| Humidity |
Work humidity: 5-85%, no-condensing |
| Storage humidity: 5-95%, non-condensing |
| Software Specification |
| Wired Features |
Dynamic IP/Static IP/PPPoE setting, Multiple WAN, PBR, Load Balancing, VLAN, Static NAT, Dynamic NAT, Port Mapping, IPV4/IPV6 DHCP Server, DHCP Snooping, DNS, IPSec VPN |
| Wireless Features |
CAPWAP, High Availability, AP Upgrading, Manual and Regular AP Restarting, Limit Numbers of Access Clients, Restore AP, AP Status Monitoring, STA Status Monitoring, Manually/Automatically Work Channel Setting, Manually/Automatically Transmission Power Setting, Wireless Channel Optimization, 802.11k/v/r Fast Roaming, AP Escape |
| Wireless QoS |
Bandwidth Limitation Based on AP Group, Bandwidth Limitation Based On SSID, Bandwidth Limitation Based On User |
| Wireless Security |
WPA/WPA2/WPA3, STA Isolation, STA SAVI, STA Blacklist & Whitelist, Anti-rogue, Flood Attack Detection, SSID Hidden |
| Flow Control |
Access Control List, Bandwidth Limitation of Downlink and Uplink Interfaces, Connection Number Limitation, Time Access List |
| Authentication |
Open, PSK, 802.1X, Portal, Local/External Radius |
| Security Features |
Application Filtering, URL Filtering, Keyword Filtering, Mail Filtering, File Type Filtering, Intrusion Prevention (IPS), Behavior Record |
| Attack Protection |
Flood Attack, Single Packet Attack, Network Scan Attack, Sources Address Spoofing, Network Access Blacklist |
| Management |
Web, Console, PING, Trace Route, Packet Capture, Cloud, SNMP, Configuration Backup and Restore, Reset |
