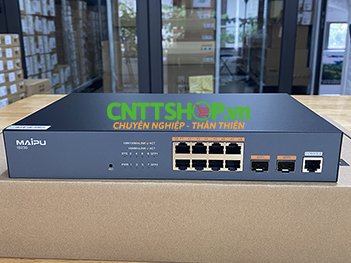

| Datasheet Maipu IS230-10TF-AC |
| interface |
| Access port |
8x 10/100/1000M Base-T |
| Uplink Port |
2x1000M SFP |
| Performance parameter |
| Switching capability |
20Gbps |
| Throughput |
14.8Mpps |
| Buffer |
4.1Mbit |
| Jumbo frames |
9KBytes |
| MAC entries |
8K |
| VLAN |
4K |
| Link Aggregation |
8 |
| QinQ |
Yes |
| Queue/Port |
8 |
| Multicast groups |
512 |
| Standards & Protocols |
| L2 protocol |
VLAN, Private VLAN, Voice VLAN, GVRP, MSTP, BPDU guard, Traffic control, broadcast storm suppression, external loop detection, link aggregation, 1:1 port mirroring, LLDP,
Aging time and add/remove static MAC, mac-address management 1:1 and N:1 VLAN mapping
|
| Multicast |
IGMP compatible, IGMP Snooping, Fast leave, multicast VLAN, MLD |
| QoS |
Each port supports 8 queues Supporting 802.1p/TOS/DSCP priority and mapping Port speed limitation and traffic monitoring
Queue scheduling: SP, WRR, SP+WRR
Rate Limit, Bandwidth control based on port Storm Control
|
| Application protocol |
FTP, TFTP, HTTP, SNTP, DNS Client, DHCP Client, DHCP Snooping, Option82 |
| Security mechanism |
Supporting 802.1X and Guest VLAN, MAC-based authentication Port isolation, Error-disable, Port
Security, IP/MAC/Port/VLAN binding manually
MAC address binding and MAC quantity limitation
ARP packet speed limitation, ARP Guard, ARP Inspection, Standard ACL, extended ACL
IP Source Guard
|
| Management |
Shell, Web, Telnet, SSH, SNMP, ROM, AAA, Radius, Logging, Syslog, Ping, Trace Route, Link
Detection(VCT)
|
| IEEE standards |
IEEE 802.3u (100BASE-T) IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-X) IEEE 802.1ad (QinQ)
IEEE 802.3ad (LACP) IEEE 802.3x (Flow Control) |
