| Hardware specification |
| Physical ports |

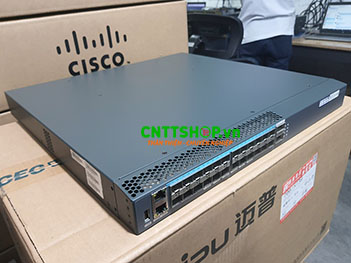

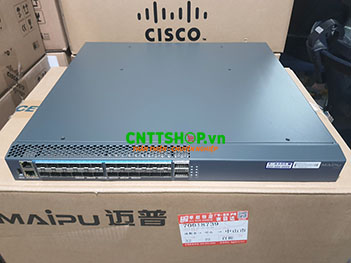

24*10G SFP+ optical interfaces, 2*40G QSFP optical interfaces, dual-modular power and Fan slots. |
Management
interface |
One Console port, one management Ethernet port, one reset bottom, one USB interface |

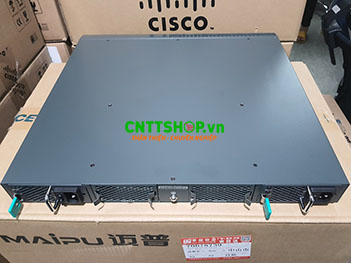

| Power Slots |
2 |
| Fan Slots |
2 |
| Dimension(W×D×H) |
440mm×420mm×44mm |
| Power consumption |
120W*2 |
|
Power Input
|
- Two Power Slots
- Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz
|
| Temperature |
- Work temperature: -10℃ to 45℃
- Storage temperature: -40℃ to 70℃
|
| Humidity |
- Work humidity: 10% to 90%, no-condensing
- Storage humidity: 5% to 95%, no-condensing
|
| Switching capacity |
640Gbps |
| MTBF |
>100, 000 hours |
| Software Features |
| Port features |
- Port isolation, UNI/NNI isolation
- Storm suppression
- Port auto-sensing
|
MAC address
management |
- Learning quantity limitation based on port, VLAN, global MAC address
- Static MAC configuration
- Black hole address configuration
- MAC address auto learning and aging
- MAC address migration alarm
|
| VLAN |
- 4K VLANs, VLAN based on port, MAC, IP address, protocol number
- VLAN Mapping N:1
- PVLAN
- Super-VLAN
- GVRP
|
| Q-in-Q |
Basic Q-in-Q and selective Q-in-Q |
Ring-network
protection |
- STP/MSTP/RSTP, BPDU Guard, Root Guard
- Flap Guard, Loop Guard, edge port detection, BPDU message
encryption
- EIPS
|
| Port mirroring |
- One-to-one, multi-to-one port mirroring
- Data flow mirroring
- ERSPAN remote mirroring
- ERSPAN enhanced remote mirroring
- VLAN mirroring
|
| Link aggregation |
- Dynamic link aggregation
- Static link aggregation
- Cross-board, cross-device link aggregation
- Traffic load balance
|
| IP protocol |
TCP, UDP, Ping, Traceroute, Telnet, FTP, TFTP, ICMPv4, DNS, UDP
Helper, DHCP, DHCP server, DHCP Delay, DHCP Snooping, NTP, SNTP,
support ARP, ARP Proxy |
| Routing protocol |
- Static Routes, RIPv1/v2, IRMP, OSPFv2, IS-IS, BGP
- Routing policy, routing iteration, policy routing
|
| L2 multicast |
IGMPv1/v2/v3 Snooping, multicast VLAN, support MLD v1/v2
Snooping |
| L3 multicast |
IGMPv1/v2/v3, MLD v1/v2, multicast static routing, multicast routing
in IPv4 domain, multicast routing between IPv4 domains, IPv4
multicast group management, support MSDP, PIM-SM, PIM-DM, PIMSSM, PIM-SDM. |
| ACL |
- Standard ACL
- Extended ACL
- Mixed ACL
- MAC ACL
- Port-based ACL
- ACL based on L3 interface
- VLAN-based ACL
- Global-based ACL
- Ingress/Egress ACL
- ACL matching logs
- Bind ALC based on time domain
|
| QOS |
- SP, RR, WRR, WDRR, and other queue scheduling modes
- 802.1p, DSCP, and other priority mapping
- Flow classification
- Traffic monitoring
- Traffic shaping
- Congestion management
- Congestion avoidance
- Rate limitation based on time domain
- Traffic shaping based on time domain
|
| Device security |
Prevent packet attack, prevent protocol packet attack, support attack
detection function, protocol packet protection, message sending and
receiving diagnosis, CPU protection technology
|
| Network security |
URPF check, packet filtering function, protocol classification flow
limiting, port isolation, DHCP Snooping, Dynamic ARP Inspection, ARP
Check, Host Guard
|
Management
security |
Device management security, network user binding, AAA, SSH2.0,
force to update the password periodically, login password strength
setting, multi-login failure locking function
|
| Access security |
Portal authentication, 802.1X authentication, MAC authentication, port
security, trusted device access
|
| H-VST |
Horizontal virtualization, support for splitting, merging, multiactivating, and many other online tests. |
| M-VST |
Vertical virtualization management |
Large layer 2
Technology |
VxLAN, EVPN |
Device
Management |
Console port login, Telnet, SSH V1/V2, CLI for device management,
IBM, HP and third-party network management platform. |
| File Management |
Upload / download files via FTP/TFTP, formatting, files, directory
creation, copy, delete, save file management functions |
Network
maintenance |
Ping, Traceroute, LSP Ping/Tracert function, port loop monitoring |
Network
Management |
SNMP V1/V2/V3, RMON, WEB network management, third-party
network management, SSH V1/V2, support remote batch upgrade,
configuration auto delivery, IPFIX/SFLOW, support TR069 |
| Green Energy |
IEEE 802.3az EEE (energy efficiency Ethernet) |
| Device reliability |
- Support power hot-swap
- Support fan hot-swap
- Support IOS backup and recovery, support configuration file backup
and recovery
|
Network
Reliability |
- VRRP, VBRP
- IP FRR, BFD, ULFD, ULPP, Monitor Link, keepalive
|
