LED

Mark

Color

Status

Description

system

SYS

Green

On

Device is   powered on and starting.

Blink

Device is   running normally.

Off

Device is   powered off.

Optical signal state

REG

Yellow

Blink

Device is not registered to the PON system.

Green

Blink

Device is   being registered.

Green

On

Device is   registered to the PON system.

Interface

LINK/ACT

Green

On

Port is connected properly .

Off

Port connection exception or not   connected.

Blink

Port is sending or/and receiving data

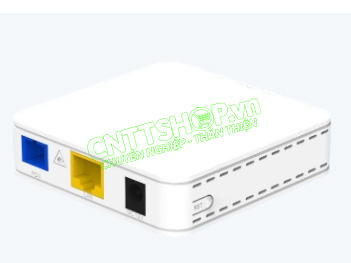

Port Type

Function

PON

Connect PON port with internet by SC/UPC type, single mode optical fiber cable.

LAN

Connect device with ethernet port by RJ-45 cat5 cable.

RST

Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings.

DC12V

Connect with power adapter.

Software Key   Feature

Basic

Support MPCP discover &   register

Support authentication   Mac/Loid/Mac + Loid

Support Triple Churning

Support DBA bandwidth

Support auto-detecting,   auto-configuration, and auto firmware upgrade

Support authentication   SN/Psw/Loid/Loid+Psw

Software mode

Bridging mode   and Routing mode.

Abnormal   protection

Detecting Rogue ONU

Security

DDOS,   Filtering Based on ACL/MAC/URL.

Alarm

Support Port   Loop Detect

Support Eth   Port Los

LAN

Support Port   rate limiting

Support Loop   detection

Support Flow   control

Support Storm control

VLAN

Support VLAN tag mode

Support VLAN transparent   mode

Support VLAN trunk mode (max   8 vlan)

Support VLAN 1:1 translation   mode (max 8 vlan)

Auto VLAN detection

Multicast

Support   IGMPv1/v2

Support IGMP   Snooping

Max Multicast   vlan 8

Max Multicast   Group 64

QoS

Support 4   queues

Support SP and   WRR

Support 802.1P

Management

Support CTC OAM 2.0 and 2.1

Support ITUT984.x OMCI

Support WEB/TELNET/CLI

Support TR069
