LED

Mark

Status

Description

Power

PWR

On

Device is   powered up.

Off

Device is   powered down.

Optical signal loss

LOS

Blink

Device does   not receive optical signals.

Off

Device has   received optical signal.

Registration

REG

On

Device is registered to the PON system.

Off

Device is not registered to the PON system.

Blink

Device is registering.

Interface

GE、FE

On

Port is   connected properly.

Off

Port connection exception or not   connected.

Blink

Port is sending or/and receiving data.

Wireless

Wi-Fi

On

Wi-Fi turned   on.

Off

Device is   power off or Wi-Fi turned off.

Blink

Wi-Fi data   transmission

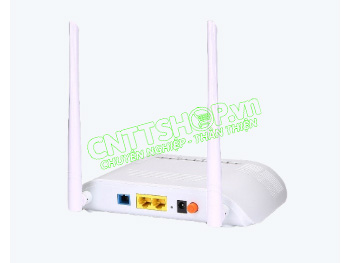

Port Type

Function

PON

V2802W:SC/UPC type, single mode optical fiber cable             V2802WT:SC/APC type, single mode optical fiber cable with WDM

GE FE

Connect device with ethernet port by RJ-45 cat5 cable.

RST

Press down reset button and keep1-5seconds to make the device restart and recover   from the factory default settings.

DC12V

Connect with power adapter.

Power On/OFF

Power turns on/off.

Hardware   Specification

PON interface

1 GPON Class B+

Receiving sensitivity: ≤-28dBm, Saturability: -8dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

Wavelength

Tx1310nm,Rx 1490nm

Optical   interface

SC/UPC connector

LAN interface

1 x   10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces.   Full/Half, RJ45 connector

Wi-Fi   interface

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: multiple SSID

Channel:13

Modulation type: DSSS、CCK and OFDM

Encoding   scheme: BPSK、QPSK、16QAM and 64QAM

LED

For POWER, LOS, PON, GE, FE, Wi-Fi

Operating condition

Temperature: 0℃～+50℃

Humidity: 10%～90%（non-condensing）

Storing

Temperature: -30℃～+70℃

condition

Humidity: 10%～90%（non-condensing）

Power supply

DC 12V/1A

Power supply

≤6W

Dimension

185mm×120mm×34mm（L×W×H）

Net weight

0.24Kg

Software Key Feature

Software mode

Bridging and   Routing Mode

Basic

Support MPCP discover and register

Support authentication Mac/Loid/Mac+Loid

Support Triple Churning

Support DBA bandwidth

Support auto-detecting, auto-configuration, and auto   firmware upgrade

Support authentication SN/Psw/Loid/Loid+Psw

Alarm

Support Dying Gasp

Support Port Loop Detect

Support Eth Port Los

LAN

Support Loop Detection

Support Storm Control

VLAN

Support 4K VLAN

Support VLAN Tag/untag

Support VLAN Translation

Support VLAN Bound

Support Auto VLAN Detection

Multicast

Support IGMPv1/v2

Support IGMP Snooping

Support MLD

Max Multicast Group 64

QoS

Support 4   queues

Support SP and   WRR

Support 802.1P

L3

Support DHCP/PPPOE/Static IP

Support NAT

Support IPv4 Static route

Support IPv4 dual stack

Wi-Fi

IEEE802.11b/g/n   (TX power:17dBm/16dBm/15dBm), Up to 300Mbps

Support Authentication:   WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)

Support multiple SSID and SSID conceal

Support Wireless channel selection

Management

Support CTC OAM 2.1 and 3.0

Support ITUT984.x OMCI

Support WEB

Support Telnet

Support CLI
