LED

Mark

Status

Description

Power

POWER

On

The device is   powered up.

Off

The device is powered   down.

Optical signal loss

LOS

Blink

Device does   not receive optical signals.

Off

Device has  received optical signal.

Registration

REG

On

The device is   registered to the PON system.

Off

Device is not registered to the PON system.

Blink

Device registration is incorrect.

Interface

LINK/ACT

On

Port is connected properly (LINK).

Off

Port connection exception or not connected.

Blink

Port is sending or/and receiving data (ACT).

Wi-Fi

Wi-Fi

On

Wi-Fi running

Off

Wi-Fi not   working

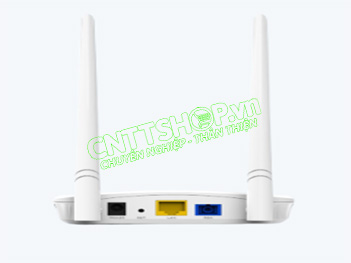

Port Type

Function

PON

Connect   PON port with internet by SC/UPC type, single mode optical fiber cable.

LAN

Connect   device with ethernet port by RJ-45 cat5 cable.

RST

Press   down reset button and keep1-5seconds to make the device restart and recover   from the factory default settings.

Power ON/OFF

Power   on and Power off

DC12V

Connect   with power adapter

Hardware   Specification

PON interface

GPON Class B+

Wavelength: Tx1310nm,Rx 1490nm

SC/UPC connector

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

1 x   10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half,   RJ45 connector

Wi-Fi   interface

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: multiple SSID

Channel:13

Modulation type: DSSS、CCK and OFDM

Encoding   scheme: BPSK、QPSK、16QAM and 64QAM

LED

Status of POWER、LOS、PON、LAN、Wi-Fi

Operating   condition

Temperature: 0℃～+50℃

Humidity: 10%～90%（non-condensing）

Storing

Temperature : -30℃～+60℃

condition

Humidity :10%～90%（non-condensing）

Power supply

DC 12V/0.5A

Power   consumption

≤6W

Dimension

120mm×78mm×30mm（L×W×H）

Net weight

0.15Kg

Software Key Feature

Software mode

Routing mode.

 Wi-Fi

IEEE802.11b/g/n   (TX power:17dBm/16dBm/15dBm)

Wi-Fi Authentication:   WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)

 Security

DDOS,   Filtering Based on ACL/MAC/URL.

 Layer2

802.1D&802.1ad   bridge, 802.1p Cos, 802.1Q VLAN.

 Layer3

IPv4/IPv6,   DHCP Client/Server, PPPoE, NAT, DMZ, DDNS.

 Multicast

IGMP v1/v2/v3,   IGMP snooping.

 Security

Flow &   Storm control, Loop Detection.

 O&M

WEB/TELNET/OAM/OMCI/TR069.
