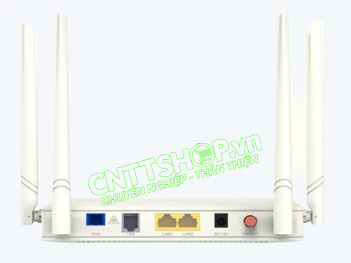

Maipu PU3200-2GTAC GPON HGU

LED

ON

Blink

OFF

PWR

The device is powered up

—

The device is powered down

PON

Green is registered to the PON system

Green is registering to the PON system

Green is not registered to the PON system

LOS

Device does not receive optical signals

—

Device have received optical signals

WAN

Route WAN connect to internet.

—

Router WAN do not connect to internet.

WIFI(2.4/5.0G)

Wi-Fi turned on

Wi-Fi turn on and with ongoing data transmission

Device is power off or Wi-Fi turned off

PHONE (option)

Device has registered to the soft-switch, but without ongoing data transmission

Phone hooks off or the port is with ongoing data transmission

Device is power off or not registered to the soft-switch

LAN1～LAN2

Port is connected properly

Port is sending or/and receiving data

Port connection exception or not connected

Hardware Specification

GPON Class B+

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0～+4dBm

Transmission distance: 20KM

Wavelength

Tx1310nm, Rx 1490nm

Optical interface

SC/UPC connector

LAN interface

2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector

POTS interface (option)

1 x RJ11 connectors

Support: G.711A/G.711U/G.723/G.729 codec

Support: T.30/T.38/G.711 Fax mode, DTMF Relay

Wi-Fi interface

Compliant with IEEE802.11b/g/n/ac

2.4GHz Operating frequency: 2.400-2.483GHz

5.0GHz Operating frequency: 5.150-5.825GHz

Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps

Support: multiple SSID

TX power: 11n--22dBm/11ac--24dBm

LED

POWER,LOS,PON,WAN, LAN1,LAN2,2.4G ,5G,PHONE

Operating condition

Temperature: 0℃～+50℃

Humidity: 10%～90%（non-condensing）

Storing condition

Temperature: -30℃～+60℃

Humidity: 10%～90%（non-condensing）

Power adapter

DC 12V/1.5A or DC 12V/1.0A

Power supply

≤10W

Dimension

178mm×120mm×30m(L×W×H)

Net weight

0.32Kg

Software Key Feature

Management Mode

OAM/OMCI,Telnet,WEB,TR069

Data Service Functions

Full speed non-blocking switching

2K MAC address table

64 full range VLAN ID

Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc

Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc

Support auto polarity detection of Ethernet ports (AUTO MDIX)

Integrated IEEE802.1p QoS with four level priority queues

Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy

Support bridge, router and bridge/router mixed mode

Wi-Fi Service Functions

Integrated 802.11b/g/n/ac

Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)

Modulation type: DSSS ,CCK and OFDM

Encoding scheme: BPSK ,QPSK ,16QAM and 64QAM

POTS Service Function(option)

Call protocol: SIP (IMS compatible) seamless compatible with all popular call agent

Integrate heartbeat function and support active/standby call agent

Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent

Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length

Support high/low speed fax, bypass fax, and T38 fax

Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service

Multi-party conferencing

IP address assignment: dynamic PPPoE/DHCP Client and static IP

Support WEB ,CLI ,IVR ,TR069

Call loss less than 0.01%
