LED

ON

Blink

OFF

PWR

The device is powered up

N/A

The device is powered down

PON

Green is registered to the PON system

Green   is registering to the PON system

Device is not registered to the PON system

LOS

Device does not receive optical signals

N/A

Device have received optical signals

LAN1~LAN4

Port   is connected properly

Port   is Sending/Receiving Data

The   subscriber network cable is not plugged tightly or the port connection is   incorrect or no connection.

Wi-Fi

 Wi-Fi   Turn On

Wi-Fi Turn On with ongoing data transmission

USB

USB device is connected

Ongoing   data transmission

USB device not connected

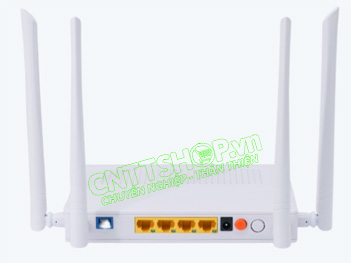

Port Type

Function

PON

Connect PON port   with internet by SC/UPC type, single mode optical fiber cable.

LAN 1/2/3/4

Connect device   with ethernet port by RJ-45 cat5 cable.

RST Button

Press down reset   button and keep about 5seconds to make the device restart and recover from   the factory default settings.

Pair Button

Press down WLAN   Pair button to begin pairing.

Wi-Fi Button

WLAN on/off.

DC12V

Connect with power   adapter.

Hardware                                                    Specification

PON interface

GPON Class B+

Receiving sensitivity: ≤-28dBm

Transmitting optical power:   0～+4dBm

Transmission distance: 20KM

Wavelength

Tx1310nm, Rx 1490nm

Optical interface

SC/UPC connector

LAN interface

4*10/100/1000Mbps auto   adaptive Ethernet interfaces, Full/Half, RJ45 connector

USB interface

USB 3.0, Transmission Rate:   4.8Gbps

Wi-Fi interface

Compliant with   IEEE802.11b/g/n/ac

2.4GHz Operating frequency:   2.400-2.483GHz (Wi-Fi 4)

5.0GHz Operating frequency:   5.150-5.825GHz (Wi-Fi 5 wave 2)

WiFi:4*4 MIMO,5dBi antenna,   rate up to 1.167Gbps, Multiple SSID

TX power:   11n--22dBm/11ac--24dBm

Operating Environment

Temperature: 0℃～+50℃

Humidity: 10%～90%（non-condensing）

Storing Environment

Temperature: -30℃～+60℃

Humidity: 10%～90%（non-condensing）

Power Supply

DC 12V/1.5A,12W

Dimension

178mm×120mm×30m(L×W×H)

Net weight

0.42kg
