| Model |

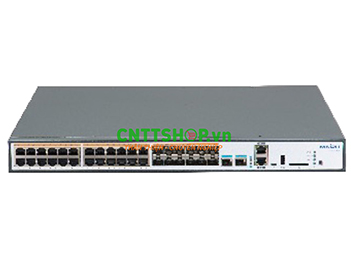

WNC6600-1000-AC |
| Hardware Interface |
12x 100/1000M Base-T interfaces
12x GE Combo interfaces (SFP, RJ45)
2x 10GE SFP+ interfaces
1x RJ45 Console
1x USB Console
1x RJ45 DC0 interfaces
|
| Default Managed APs |
128 |
| Maximum Managed APs |
1024 |
| POE ports |
N/A |
| Physical index |
| Power |
AC:100-240V 50/60Hz
DC:-40～-57V |
| Power Redundant |
No |
| Power Hot Swap |
No |
| Power Consumption |
≥94W |
| PoE Power Consumption |
125W |
| Dimension (Wx Dx H mm) |
442x 420x 44.3 |
| Power Lightning Protection Index |
Common-mode, differential-mode 6KV |
| Environment Parameters |
| Work Humidity (No-condensing) |
5-85% (No-condensing) |
| Work Temperature |
0-45℃ |
| Software specification |
| L2 Protocol |
LACP Link Aggregation, Port Isolation, VLAN, STP/RSTP/MSTP, Error-Disable |
| L3 Protocol |
Static Route v4/v6, RIP/RIPng, OSPF, OSPFv3, Routing Policy, DHCP Client, DHCP Server, DHCP Relay |
| Network Security |
Port Security, IP Source Guard, DHCP Snooping, DHCP Option82, DAI(Dynamic ARP Inspection), ACL(Standard IP ACL, Extended IP ACL, Standard MAC ACL, Extended MAC ACL, Standard Protocol ACL, Extended Hybrid ACL, Time-based ACL), AAA(Authentication, Authorization, Accounting, Radius, TACACS), 802.1X |
| Network Management |
SNMP v1/v2/v3, MIB, RMON, SYSLOG, WEB(HTTP/HTTPS), CLI(Telnet, SSH), Ping, Tracert, FTP/TFTP, Debug, Keep Alive Gateway, NTP, SPAN, RSPAN, ERSPAN |
| Network Reliability |
VRRP, VRRPv3, Track, BFD |
| Wireless Authentication |
Open, WPA-PSK, WPA-802.1X, WPA2-PSK, WPA2-802.1X, WPA3-PSK, WPA3-802.1X, Portal, MAC Authentication for Dumb Terminal |
| Wireless Security |
WIDS, User Isolation, SSID Hidden, SAVI, Anti-Rouge, Service Status Control, Web Access Control, ARP Suppression Protection |
| Wireless RF Management |
RRM, Set Working Channel Manually, Set Transmit Power Manually, DCA(Dynamic Channel Adjustment), TPC(Transmit Power Control) |
| Wireless Roaming |
L2 Roaming & L3 Roaming |
| Wireless Control |
WLAN ACL, BYOD, Timing Policy(AP Rebooting, Radio Rebooting), STA Number Control, Load Balancing between RF/AP, 5G Priority, RSSI Threshold, Weak Signal Offline, STA Blacklist, STA Whitelist |
| Wireless QoS |
WMM(Wi-Fi Multimedia, sub-set of 802.11e), WMF(Wireless Multicast Forwarding) |
| Wireless Reliability |
1+1 Backup, 1:1 Backup, HAP(Hybrid Access Point, AP Escape), Uplink Detection, Configuration Synchronization |
| Advanced Wireless Features |
RF Detection, Packet Capture on Airports, AP Plug-in Management |
| 802.11 Protocol |
Support IEEE 802.11a/b/g/n/ac/ax |
